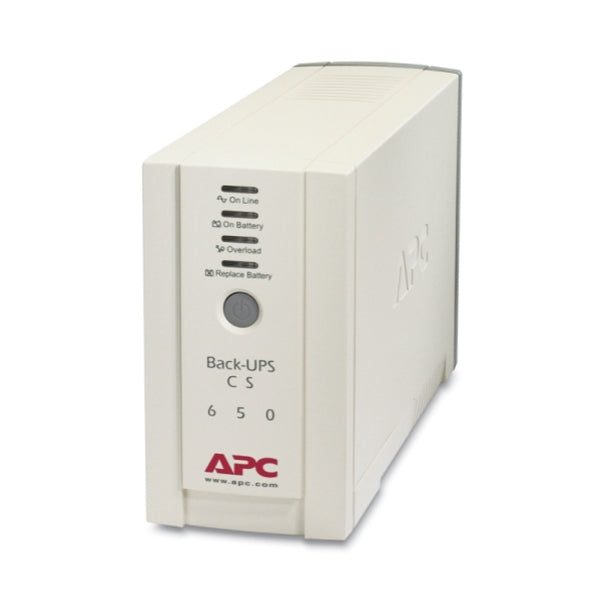

APC BACK UP UPS 650VA 230V 400W 4X IEC C13 SOCKETS

Output

Output power capacity: 400 Watts / 650 VA

Max Configurable Power (Watts): 400 Watts / 650 VA

Nominal Output Voltage: 230V

Topology: Standby

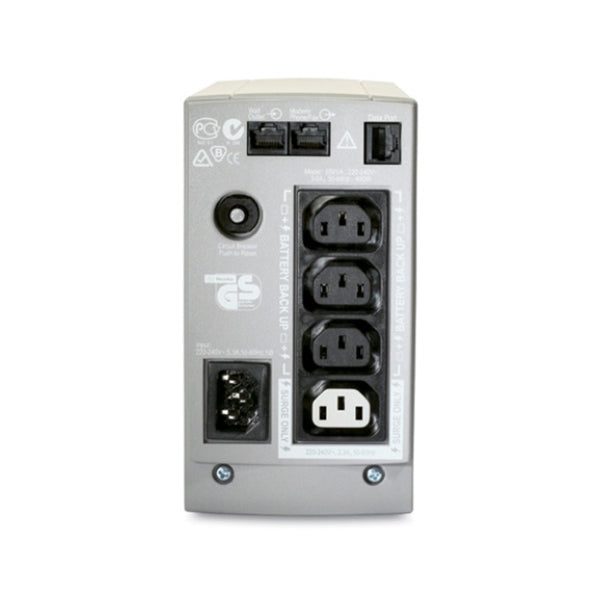

Output Connections (3) IEC 320 C13 (Battery Backup)

(1) IEC 320 C13 (selector_surgetitle)

Input

Nominal Input Voltage: 230V

Input frequency: 50/60 Hz +/- 3 Hz (auto sensing)

Input Connections: IEC-320 C14

Cord Length: 1.83 meters

Input voltage range for main operations: 180 - 260 V

Input voltage adjustable range for mains operation: 160 - 282 V

Number of Power Cords: 2

Batteries & Runtime

Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof

Typical recharge time: 8 hour(s)

Replacement Battery: RBC17

RBC Quantity: 1

Battery Volt-Amp-Hour Capacity: 95

Runtime: View Runtime Graph

Efficiency: View Efficiency Graph

Communications & Management

Interface Port(s): USB

Control panel: LED status display with On Line: On Battery: Replace Battery and Overload indicators

Audible Alarm: Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm

Surge Protection and Filtering

Surge energy rating: 320 Joules

Data Line Protection: Analog phone line for phone/fax/modem/DSL (RJ-45 connector)

Physical

Maximum Height: 165, 16.5 cm

Maximum Width: 91, 9.1 cm

Maximum Depth: 284, 28.4 cm

Net Weight: 6.04 kg

Shipping weight: 7.32 kg

Shipping Height: 494, 49.4 cm

Shipping Width: 185, 18.5 cm

Shipping Depth: 415, 41.5 cm

Color: Beige

Master Carton Units: 1.0

Environmental

Operating Environment: 0 - 40 oC

Operating Relative Humidity: 5 - 95 %

Operating Elevation: 0-9000 meters

Storage Temperature: -15 - 45 oC

Storage Relative Humidity: 5 - 95 %

Storage Elevation: 0-4500 meters

Audible noise at 1 meter from surface of unit: 45....
