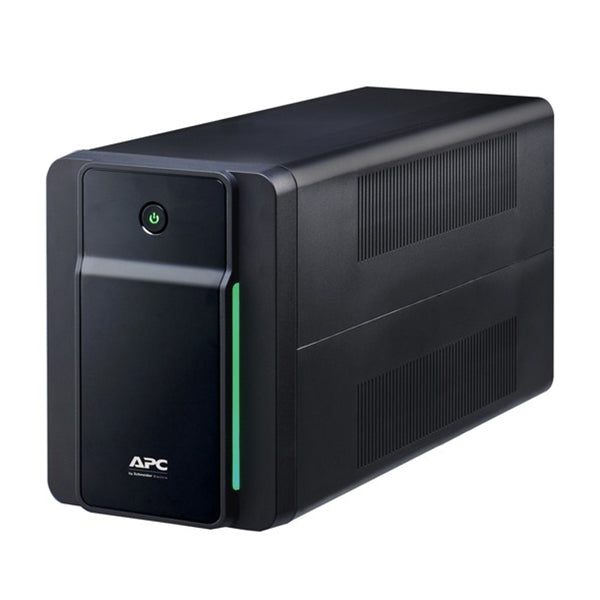

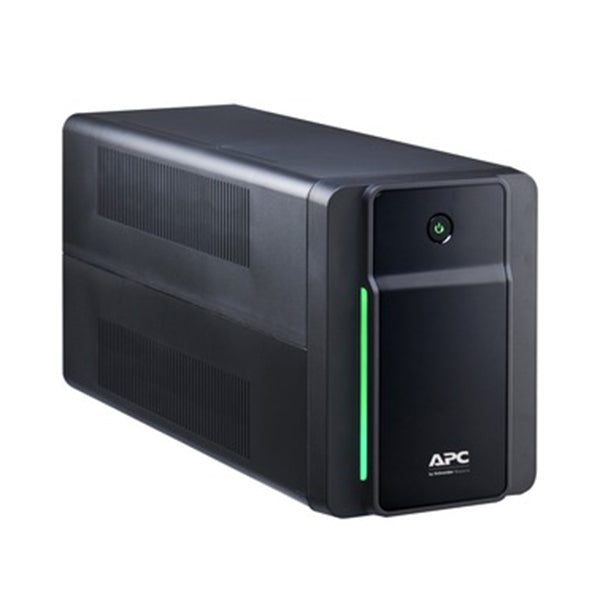

APC SCHNEIDER ELECTRIC BACK UPS LINE INTERACTIVE UPS

The Back-UPS battery backup offers guaranteed power and surge protection for wireless networks, computers, gaming consoles and other electronics in your home or business. Models supply battery backup during outages and unsafe voltage fluctuations, as well as provide protection from damaging surges and spikes. They're available in 'tower' or 'floor' styles, and together with a variety of standard features, they are the perfect choice to protect your data and keep you connected

SPECIFICATIONS

Controls/Indicators

Status Indicators: LED Status display with on line : on battery

Management

Alarm On Battery

Low Battery

Battery Information

Battery Chemistry: Lead Acid

Backup/Run Time (Half Load): 6.30 Minute

Backup/Run Time (Full Load): 48 Second

Typical Battery Recharge Time: 8 Hour

Environmental Conditions

Sound Emission: 40 dB(A)

Maximum Operating Temperature: 40oC

Maximum Operating Elevation: 914.40 m

Maximum Storage Elevation: 914.40 m

Storage Temperature: -15oC - 40oC

Technical Information

Application/Usage: Computer

Network Device

Gaming Console

Electronic Device

Home

Business

Dataline Protection: RJ-45

Plug/Connector Type: IEC 60320 C14

Receptacle Type: AUS

AVR: Yes

Transfer Time: 6 ms

Physical Characteristics

Weight (Approximate): 7.60 kg

Height: 190 mm

Width: 140 mm

Depth: 390 mm

Product Color: Black

Power Description

Input Voltage: 230 V AC

Output Voltage: 230 V AC

Load Capacity: 1.20 kVA/650 W

Surge Energy Rating: 273 J

Waveform Type: Stepped Approximated Sine Wave

Input Voltage Range 140 V AC - 300 V AC

Output Frequency: 60 Hz

Input Frequency: 60 Hz

PACKAGE CONTENTS

1 x Apc Schneider Electric Back Ups Line Interactive Ups
