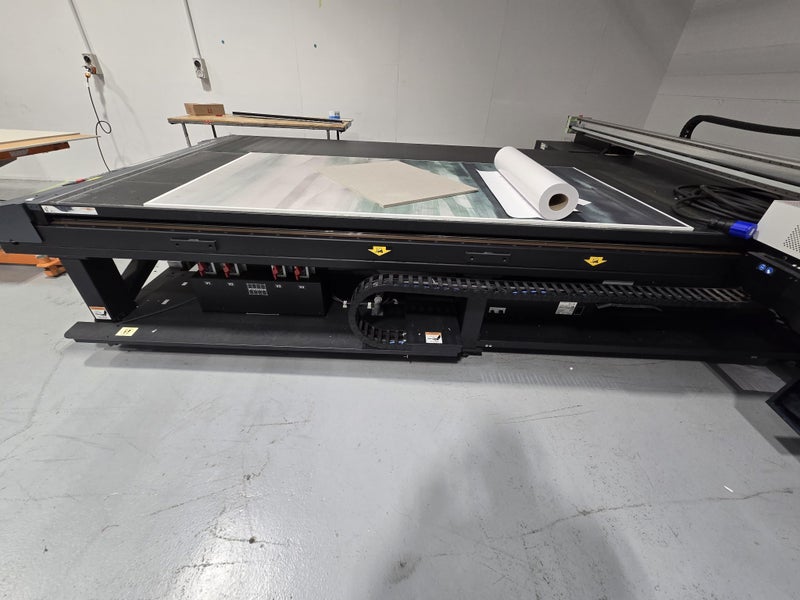

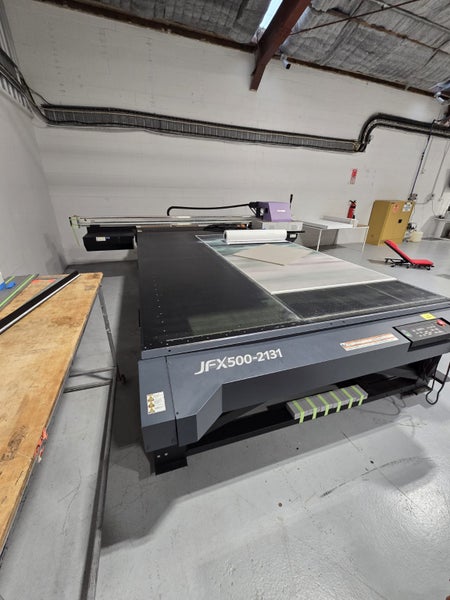

Mimaki JFX500-2131 UV-LED Flatbed Printer

Purchased new for NZ$182,000 Idle for 2 years – will require routine head servicing before production.

Key Specifications Print bed size: 2,100mm×3,100mm Maximum material thickness: 50mm , up to ~50kg/m²

Print heads: 6 on-demand Piezo heads in 3-staggered configuration Print resolutions: 300 / 600 / 900 / 1,200dpi

Max print speed: up to 60m²/h (~646ft²/hr)

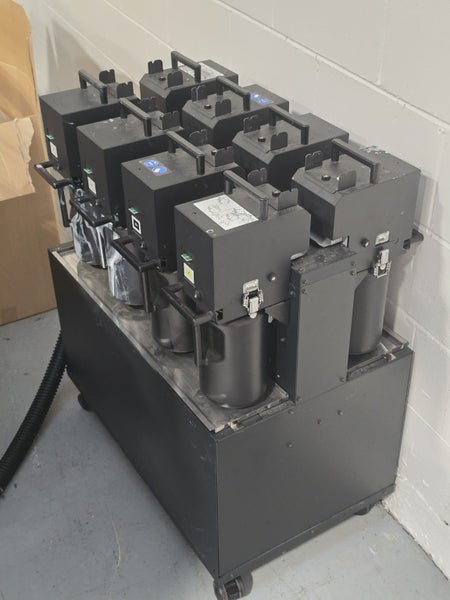

Ink options: UV-curable – CMYK, White, Clear, Primer (LUS-120/150/200, LH-100, PR-100/200) Ink circulation & degassing: White ink circulation (MCT), degassing module (MDM)

Curing system: UV-LED lamps (5,000hours lifespan) Vacuum table: Air suction with 4 vertical zones, plus layout alignment pins Accuracy: ±0.3mm absolute, ±0.2mm repeatability Interface: USB2.0; includes RasterLink6 RIP software Power: AC200-240V, 50/60Hz, =2.4kVA consumption Environment: 15–30°C, 35–65% RH; typical office dust tolerance Overall size: ~4100mm×4462mm×1490mm (W×D×H) Weight: Approx. 1353kg (2983lb) without ink station

Condition & Notes Purchased brand-new for NZ$182,000 Has been idle for two years, so we recommend a head service before use (ink may need priming/circulation) Comes with RasterLink6 RIP software and standard vacuum system Ideal for high-value jobs: signage, industrial substrates (glass, metal, wood, acrylic, stone), packaging proofing, décor, and more

Why It’s a Great Buy Deluxe oversize bed handles multiple boards or extra-large media Versatile ink options: scratch-resistant, flexible, white, clear, primer Advanced UV LED curing is cost-efficient and offers long lamp life Industry-proven print quality up to 1200dpi with banding reduction systems

This unit was working perfectly fine when we stopped using it and was stored right next to our current working printer. Stopped using it as we got a faster/ bigger printer.
