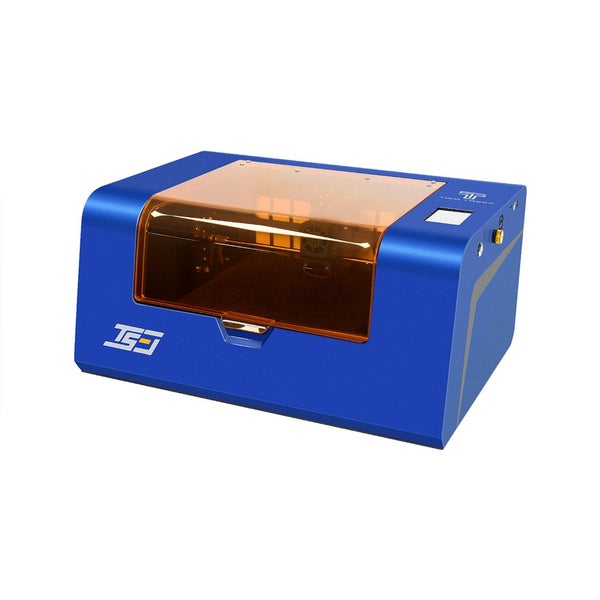

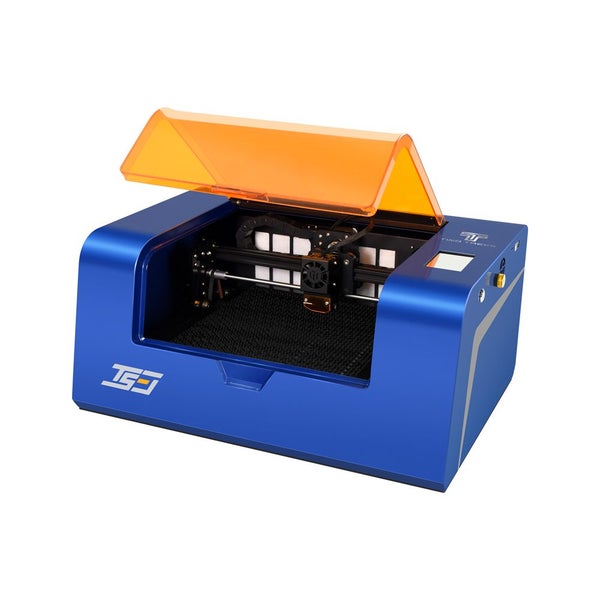

TS3 Laser Cutting & Engraving Machine Powerful 10W 3-IN-1 Enclosed

Laser Marking/Engraving/Cutting Machine

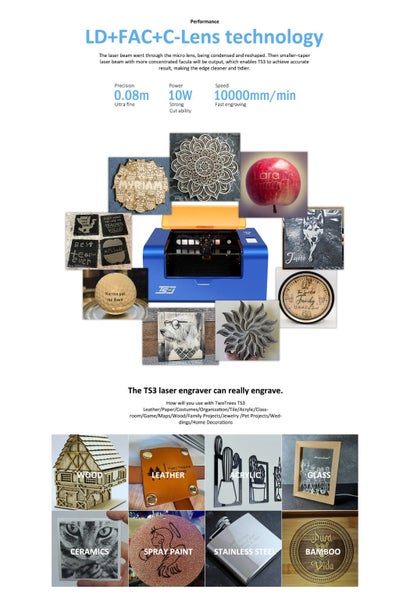

TS3 is one of the safest desktop wood engraving machines for DIY enthusiasts. Its latest LD+FAC+C-lens technology brings deeper, thinner, and evener laser trails for users. Lasers from 2 units of 5W laser head are compressed into one powerful 10W laser for faster and easier engraving and cutting. Its unique enclosed design provides extra protection for users and gets rid of all complicated installation works. It’s a compact 3-in-1 laser marking/engraving/cutting machine for both personal hobbies and commercial application. Materials Test For Engraving Material Speed (mm/min) Power (%) Times Plywood 6000 50 1 Acrylic 6000 20 1 Leather 6000 20 1 Electroplated 1000 100 1 Powder coating 6000 50 1 Anodic alumina 6000 20 1 Stainless steel 6000 100 1 Density board 6000 60 1 Peddle 6000 100 1 Plastic board 6000 40 1 Cardboard 6000 50 1 For Cutting Material Speed (mm/min) Power (%) Times Plywood 1mm 600 100 1 Plywood 2mm 450 100 1 Plywood 3mm 280 100 1 Plywood 4mm 200 100 1 Plywood 5mm 150 100 1 Plywood 6mm 100 100 1 Plywood 7-8mm 100 100 1—2 Acrylic 1mm 500 100 1 Acrylic 3mm 200 100 1 Acrylic 6mm 100 100 1—2

Specifications Model No. TS3 Laser power 10W Compressed spot laser Laser wave length 445±5nm Output power 35W-40W Material Aluminum profile + metal XY Axis Positioning Accuracy 0.1mm Engraving Size 14.2? (300200mm) Engraving accuracy 0.08mm Engraving speed 10000mm / min Engraving method USB / APP / Online / Screen Operation Engraving materials Stainless steel Document format NC?DXF?BMP?JPG?PNG?GCODE Engraving mode Image carving?Test carving?Scanning carving?Contour carving?Pixel carving Support system Windows Support Software LaserGRBL / Lightburn Machine Size 570430270mm Package Size 630500*330mm Machine Weight 14.4kg Package Weight 16kg
