Summary

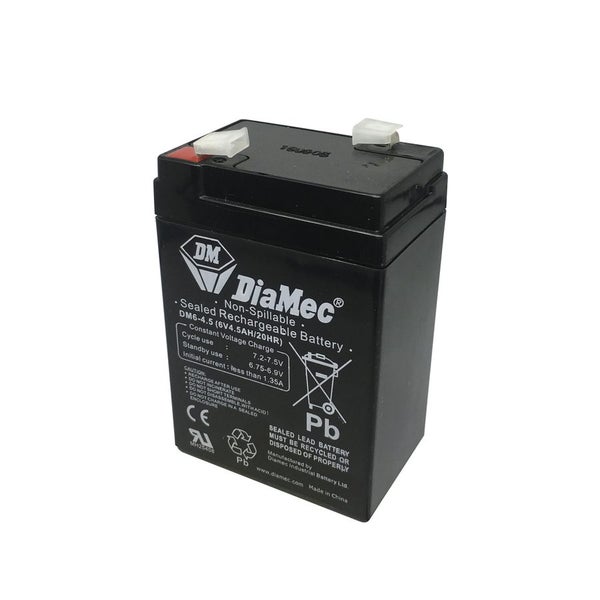

This 6V 4.5Ah SLA battery is a sealed lead acid rechargeable battery designed for reliable power supply. It features stable voltage performance and various capacity ratings for different discharge durations.

Features

• Charge current 420mA for 10-14 hours
• Discharge current 20 hr rate 200mA
• Max discharge current (5 sec): 40A
• Constant voltage charge: Initial charging current < 1.2A
• Cycle voltage: 7.20V to 7.50V @ 20oC (68oF)
• Temperature coefficient: -15mV/oC (cycle)
• Standby voltage: 6.75V to 6.90V @ 20oC (68oF)
• Temperature coefficient: -10mV/oC (standby)

Specifications

• Recharging voltage: 7.2V-7.5V
• Standard recharge current: 500mA
• Recharging time: 12 hr
• DC voltage: 6V
• Length: 70mm
• Height: 106mm
• Depth: 47mm
• Battery chemical composition: Sealed Lead Acid (SLA)
• Battery usage: Rechargeable battery
• Peak current: 67.5A
• Amp hour rating: 4.5Ah

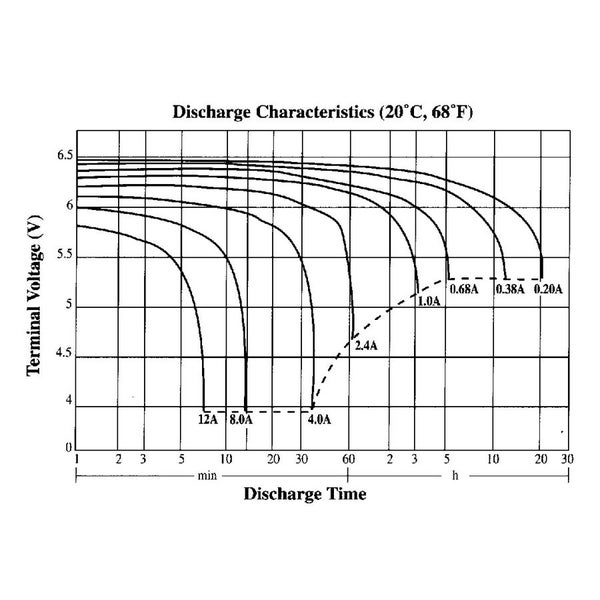

• 20 hour capacity: 4.5Ah
• 10 hour capacity: 4.05Ah
• 5 hour capacity: 3.6Ah
• 1 hour capacity: 2.7Ah
• Connection type: Spade terminals
• Type of battery: SLA block
• Internal resistance: 22mOhm

Documents

The following documents are available to download from the Folders website:

• Datasheet
