Dim.: 70mm x 37mm x 20mm(2.7”×1.4”×0.78”)

Network: GSM/GPRS

Band: 850/900/1800/1900Mhz

GPS sensitivity: -159dBm

GPS accuracy: 5m

Time To First Fix: Cold status 45s

Warm status 35s

Hot status 1s

Car charger: 12—24V input ,5V output

Wall charger: 110 - 220V input ,5V output

Battery: Chargeable changeable 3.7V 1000mAh Li-ion battery

Stand by: 300hours

Storage Temp.: -40C to 85C

Operation Temp.: -20C to 55C

Humidity: 5%--95% non-condensing

LED INDICATOR STATUS MEANING

GREEN-Not lit: Device fault or dormant.

GREEN-Continuously lit: No GPRS signal.

GREEN-Flashing: GPRS communication established.

Center-RED-Not lit: Fully charged.

Center-RED-Solid red: Charging.

BLUE-Not lit: No power to the unit or the unit can't start.

BLUE-Continuously lit: Searching for GPS signal.

BLUE-Flashing: PS location successful.

APPLICATIONS FOR ANDROID/iOS

Search TKSTAR in the Apple App Store/Google Play Store to install the applications .

Select “Log in by IMEI”

Server: 2 tkstargps net

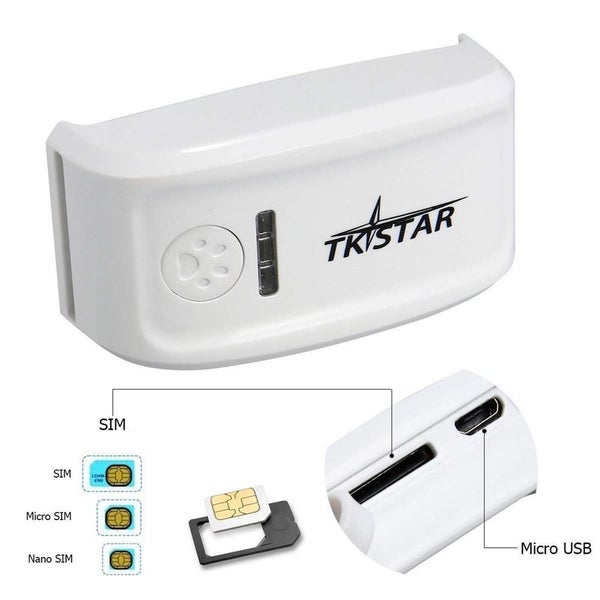

IMEI : In the back side of cover

Password: 123456

Note:

The Tracker must working 2G GSM 850/900/1800/1900mHZ sim card or Compatible this 2G GSM sim card.Must have GPRS service.

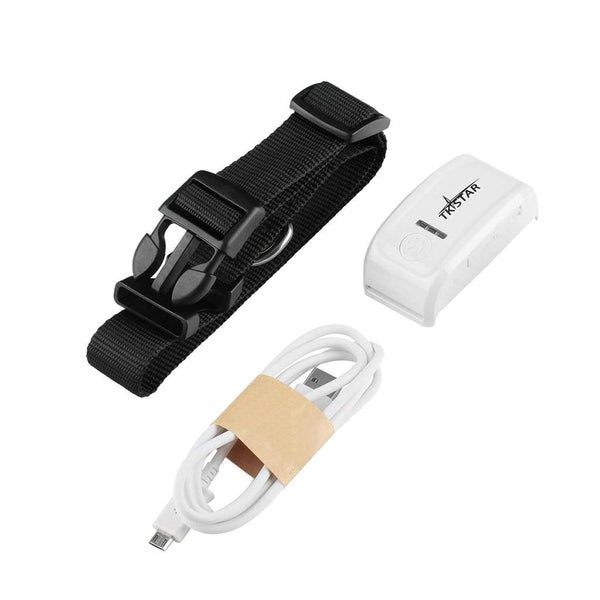

Package Includes:

1 x Pet Tracker Device

1 x USB cable

Product type: Training & Behaviour Aids

The delivery time is around 10-20 working days after your purchase
