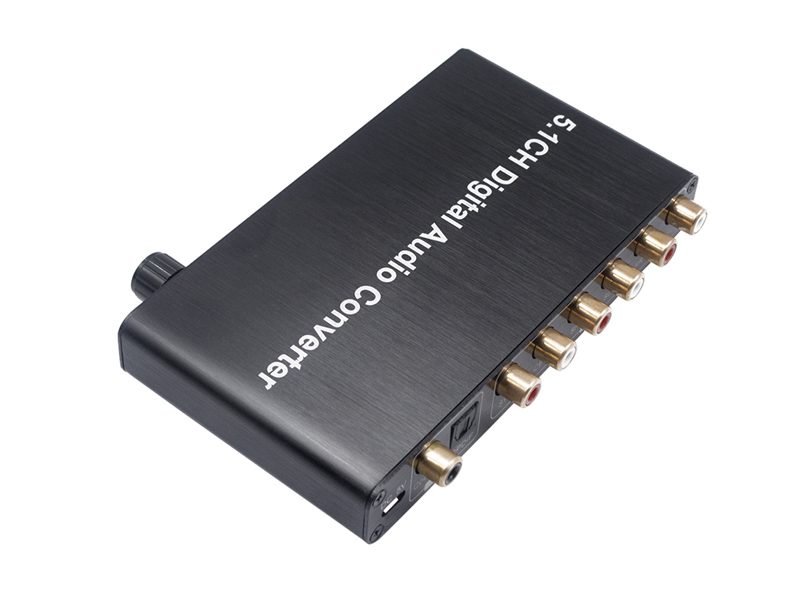

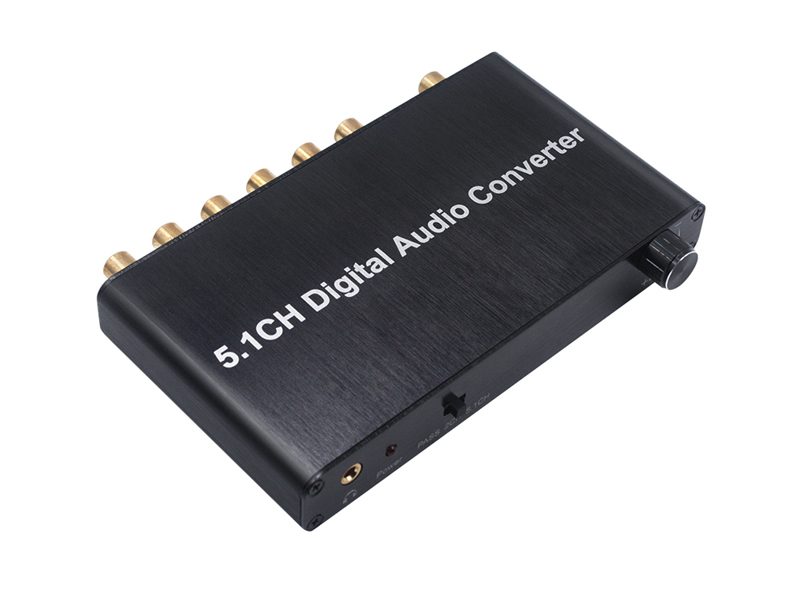

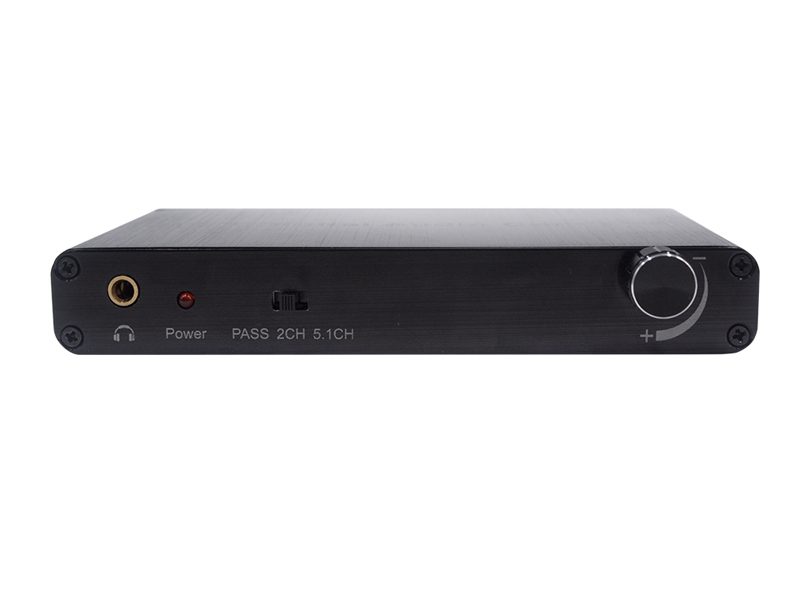

This audio decoder can auto convert optical /coaxial channel (Support LPCM/PCM/RAW) input to 5.1 channel analog audio output, and support decoding Dolby AC-3/DTS (include 5.1 RAW digital audio streaming). It is widely used in families, schools, squares, concert halls, cinemas and other public places to enjoy the shock effect of DTS or Dolby.

Features:

1. Build-in high performance RTOS operating system and audio decoder chip; support DTS/AC-3
2. Super fast start time about 3 seconds
3. Input: 1 SPDIF Optical, 1 Coaxial
4. Output: SW, CEN, SR, SL, FR, FL; 3.5mm Headphone Port
5. Auto switch between optical and coaxial channel input
6. One-key switch for Pass/2.0/5.1 channel output
7. Auto decode AC-3/DTS (LPCM/PCM/RAW) input signal without any action
8. High compatibility: Support network player, HDTV, Blu-ray DVD, DVD, PS3, Xbox 360, DM500S, DM800HD, etc
9. Small Size and Metal case, Anti-interference
10. Adopt 6CH RCA /3.5mm Headphone port output,convenient and efficient in use
11. Supports 6CH volume synchronous adjustment

Specification:

1. Support audio format, MP3, AC3, DTS, WAV, WMA
2. Signal Noise Ratio: 120db
3. Signal Noise Ratio: 80db (1KHZ)
4. Channel Unbalance: 0db
5. Sampling Rate: 32~192 KHz
6. Bit Rate: 16~24 Bit
7. Response Frequency: 20Hz~20KHz+/-0.7db
8. THD: 20Hz~20KHz 0.25-0.065%
9. THD+N: 1KHz 0.15%
10. Analog Output level: 2.2V
11. Analog Input level: 1V( 3db )
12. Working Voltage: DC +5V
13. Max Power Current: 210mA

Package Included:

1 x Decoder 1 x User Manual 1 x Power USB Cable
