Description
In good working condition apart from the tuner which I was told was not working when I purchased it but have never tried it.
Couple of cosmetic marks here and there.
Great sounding amp with big power. I have been using with various speakers including KEF LS50 Meta, Klipsch 620F and Tannoy Monitor Gold with great results.
Have used as integrated and as a power amp.
Have now gone to a NAD 2700 Power Amp.
- Power Output:
- Continuous: 150 watts per channel into 8O (20 Hz–20 kHz, 0.03% THD)
- Dynamic (IHF, 20 ms burst): 400W (8O), 600W (4O), 800W (2O)
- Bridged Mono Mode: 480W continuous into 8O; dynamic 1,200W (8O), 1,400W (4O)
- Dynamic Headroom: 5.1 dB at 8O
- Total Harmonic Distortion (THD): <0.03% (20 Hz–20 kHz)
- Frequency Response:
- Line inputs: 20 Hz–20 kHz, ±0.3 dB
- Phono (RIAA): 20 Hz–20 kHz, ±0.5 dB
- Signal-to-Noise Ratio:
- Phono (MM): 76 dB (ref. 5 mV)
- Phono (MC): 76 dB (ref. 5 mV)
- Line inputs: 96 dB (A-weighted, ref. 1W)
- Input Sensitivity:
- Phono (MM): 0.28 mV (ref. 1W)
- Phono (MC): 0.02 mV (ref. 1W)
- Line: 15 mV (ref. 1W)
- Input Impedance:
- Phono (MM/MC): 47 kO / 120 pF
- Line: 50 kO / 250 pF
- Preamplifier Features:
- Switchable MM/MC phono stage with low-noise FETs
- Semi-parametric bass and treble controls (adjustable center frequencies, bypassable)
- Bass EQ: +8 dB at 35 Hz with infrasonic filter
- Connections:
- Inputs: Phono (MM/MC), Video Sound, 5 line-level inputs
- Outputs: Preamp out, 3 outputs, speaker terminals (A/B)
- Other: AM/FM antenna inputs, phono ground, AC outlets
- Controls: Infrared remote control, Soft Clipping, Mono switch, Speaker Selector, Tone Control Bypass
- Dimensions: 17.1” W x 5.8” H x 15.2” D (435 mm x 146 mm x 385 mm)
- Weight: Approximately 15.5 kg (34 lbs)
- Power Supply: Dual-voltage, signal-tracking Power Envelope circuitry for high dynamic headroom
- Years of Manufacture: 1987–1990
Details
Condition:
Shipping & pick-up options
Destination & description | Price | |
---|---|---|
Waikato | $6.64 | |
Waikato - Rural | $14.01 | |
Rest of North Island | $51.70 | |
Rest of North Island - Rural | $57.59 | |
South Island | $83.36 | |
South Island - Rural | $90.86 | |
Pick-up available from Hamilton East, Hamilton, Waikato | Free |
Payment Options
Pay instantly by card, Ping balance or saved bank account.
Cash, NZ Bank Deposit
Questions & Answers
No questions have been asked!

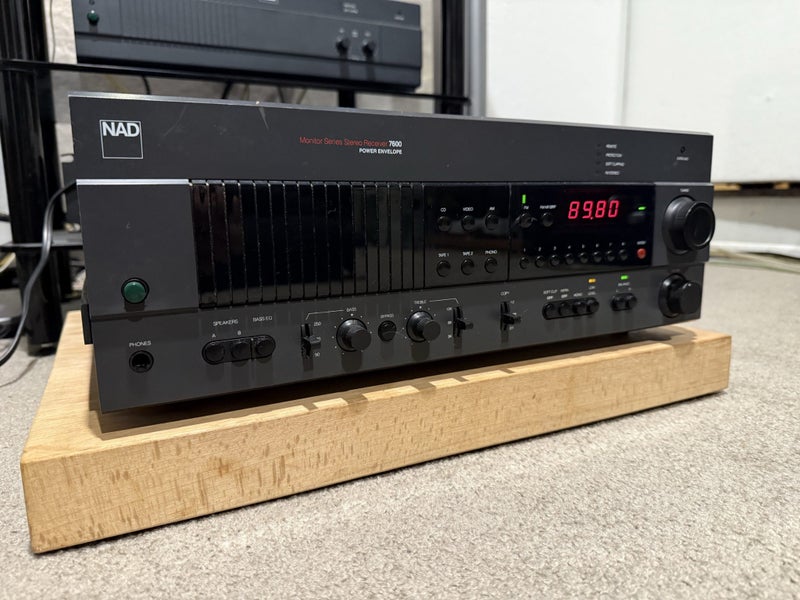

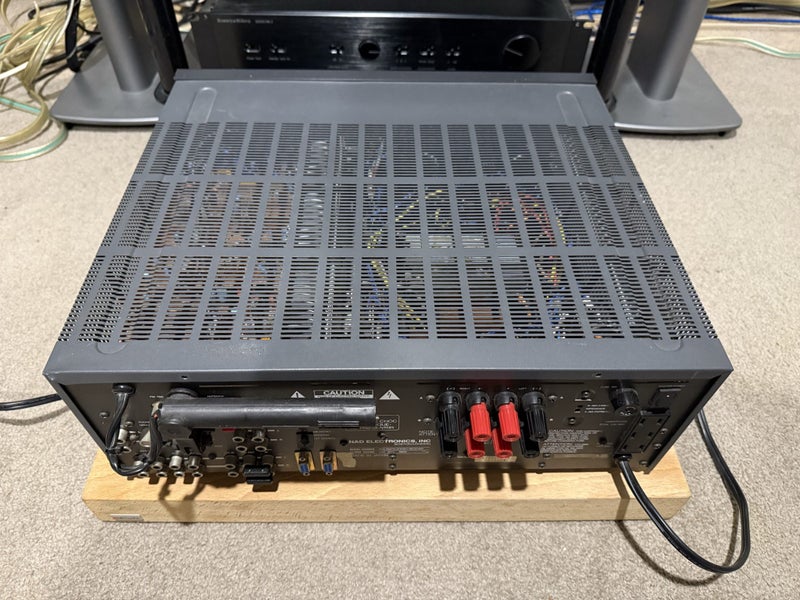

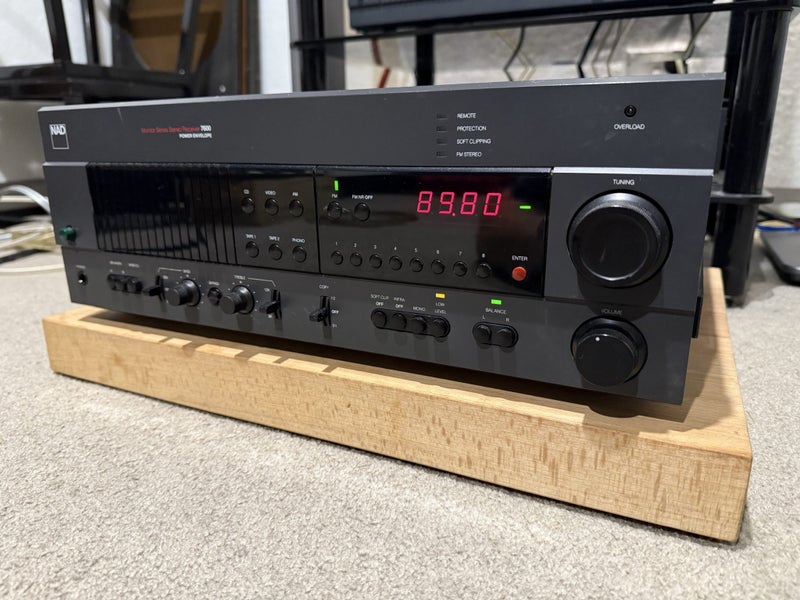

NAD 7600 Monitor Series Stereo Reciever
