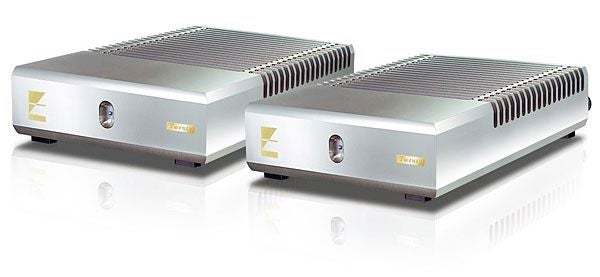

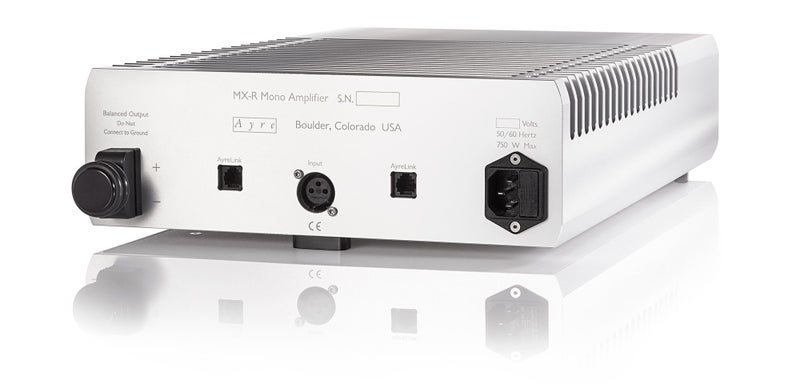

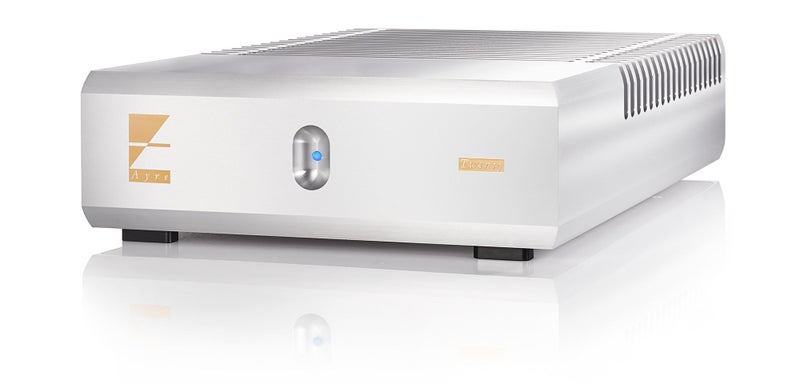

The Ayre MX-R Twenty mono amplifier is a revolutionary redesign of our highest level product. Exploring every detail in the audio path from circuit trace length to part orientation, including processes which many would consider fanatical, pushes this amplifier to the brink of perfection. The dual-transformer linear power supply using our AyreLock circuitry effortlessly drives the most demanding loudspeakers. Our exclusive EquiLock technology enhances the zero-feedback, fully-balanced circuitry for an unprecedented level of clarity and resolution. Our Double Diamond output stage offers power and control that will change the way you listen to music.

FEATURES zero-feedback

fully-balanced discrete circuitry

Ayre Double Diamond output stage

Linear analog AyreLock power supply

Ayre’s exclusive Equilock gain circuit

Ultra-low loss circuit board material

Custom developed audio-grade resistors

Proprietary polystyrene capacitors

Ayre Conditioner power line RFI filter

AyreLink communication system

SPECIFICATIONS Power Output

300 watts per channel continuous into 8 ohms 600 watts per channel continuous into 4 ohms

Gain 26 dB

Input Impedance

2 Mohm balanced (1 Mohm per phase)

Frequency Response

DC – 250 kHz

Power Consumption

45 watts in standby mode 120 watts in operating mode, no signal

Dimensions 11? W x 18.75? D x 3.75? H (28cm x 48cm x 9.5cm)

Weight

52 pounds 23 kg We are Ayre authorized NZ dealer, all products comes with 12month warranty.
