Description

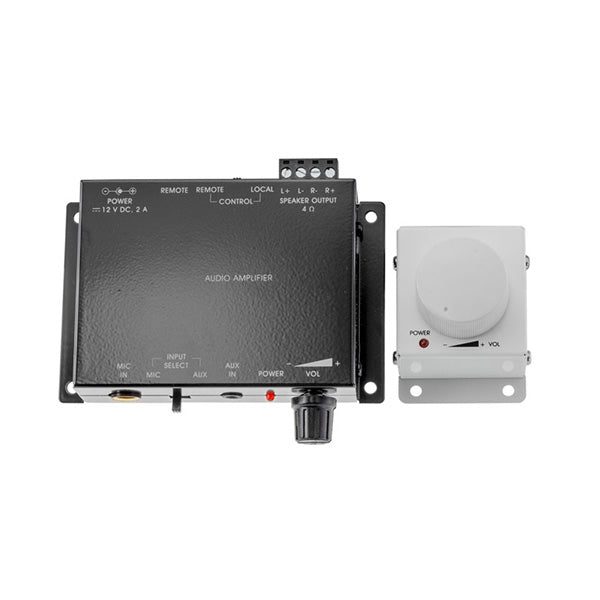

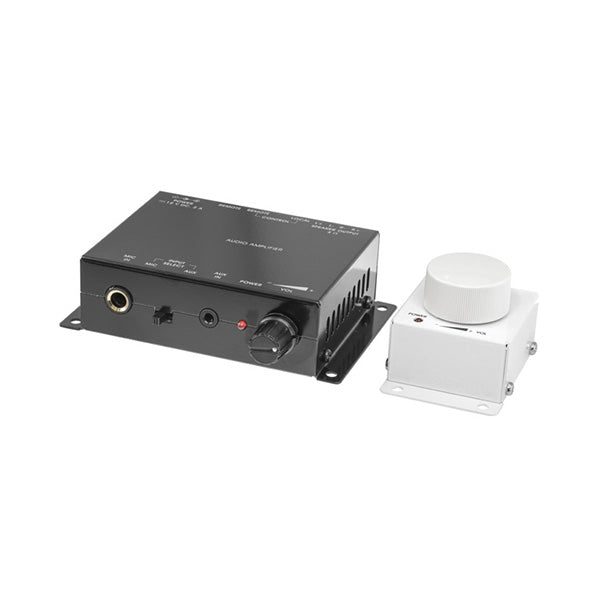

PRO2 MIC AND STEREO POWER AMPLIFIER KIT WITH VOLUME CONTROL BOX
This unit is an excellent way to add an additional zone to an existing system. Compact 15w RMS stereo amplifier with selectable 3.5mm stereo or microphone inputs. Remote wired volume control.
FEATURES
15 Watts per channel

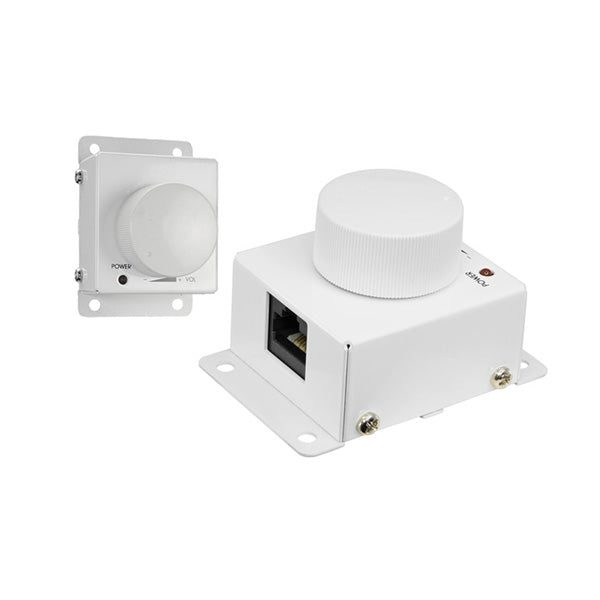

Speaker volume control
Class D power amplifier
Speaker protection circuit
Large detachable terminal block (supplied) for quick and easy installation.
Screw terminals handle wire sizes from 24 to 12 gauge.
SPECIFICATIONS
Connections
Input: 3.5mm stereo
Input: 6.5mm stereo - dynamic microphone
Speaker Outputs: For 1 speaker pair (via screw terminals)
Inputs: Dynamic microphone or stereo audio line level
Microphone Pre-Amplifier Gain: 40dB
Speaker Audio Power Amplifier:
Power Amplifier Type: Stereo Class-D
Output Power: 15W(rms) per channel (@ RL=4 ohm)
THD+N :0.06 % (@ RL=8 ohm, f= 1 kHz)
Minimum Load Resistance: 4 ohm
Includes Speaker Protection circuit
Power & Dimensions
Power Consumed: 2A Max
Power Source: DC 12 Volts 2A (Included)
Size (L x W x H): 115 x 98 x 31 mm
PACKAGE CONTENTS
1 x Pro2 Mic And Stereo Power Amplifier Kit With Volume Control Box
