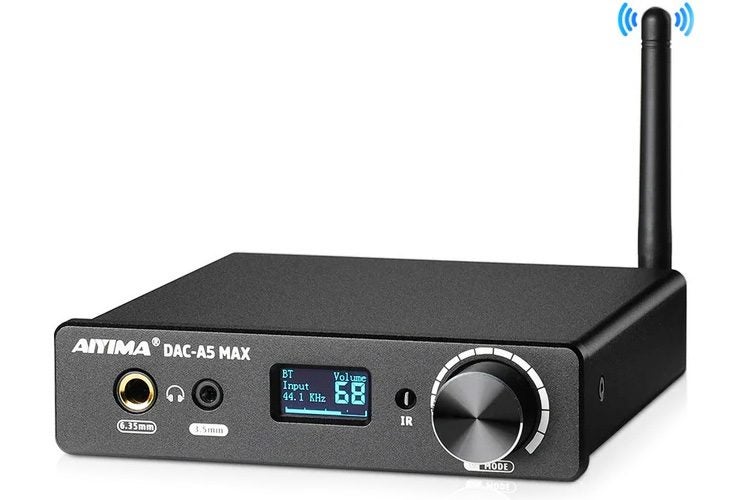

DAC A5 Max Bluetooth DAC Headphone Amplifier The AIYIMA DAC-A5 MAX is a high-performance desktop digital-to-analog converter and headphone amplifier designed for audiophiles seeking superior sound quality. Featuring the ESS ES9018K2M DAC chip and TPA6120 headphone amplifier, it supports multiple input options including USB, optical, coaxial, and Bluetooth 5.1, delivering up to 32-bit/384kHz PCM and DSD256 audio. With dual headphone outputs, RCA line-out, and a compact aluminum chassis, it offers versatile connectivity and exceptional audio fidelity

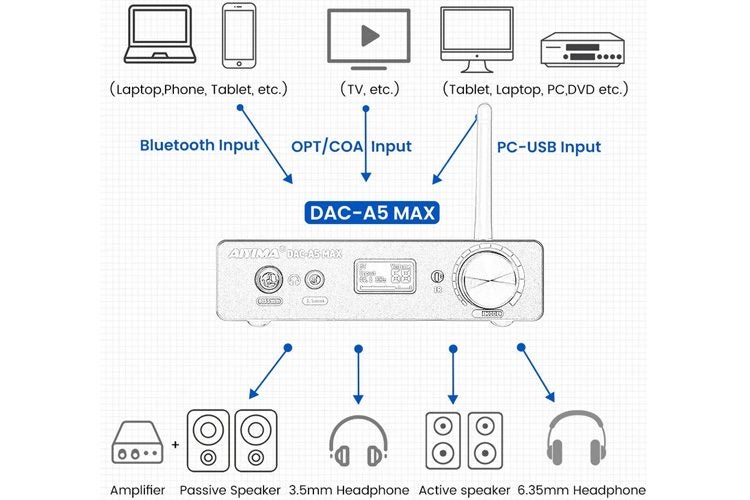

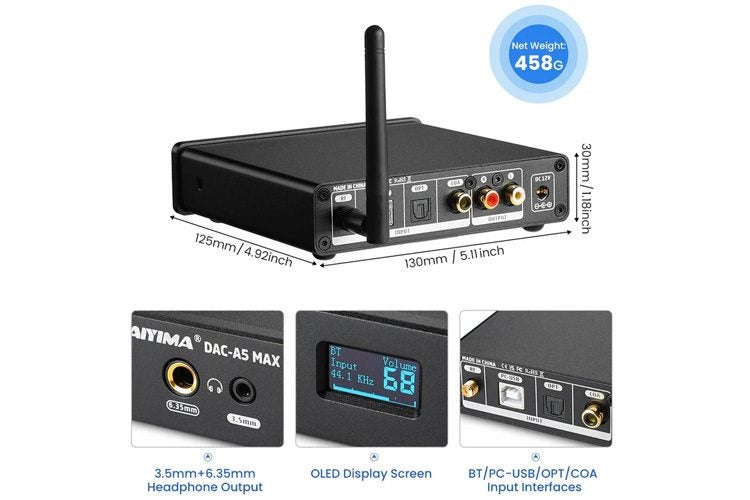

Features: High-performance ESS ES9018K2M DAC chip for superior audio quality TPA6120 headphone amplifier with NE5532 op-amp for powerful output Bluetooth 5.1 with support for SBC, AAC, aptX, aptX-LL, aptX-HD, and LDAC codecs Multiple input options: USB, optical, coaxial, and Bluetooth Supports PCM audio up to 32-bit/384kHz and DSD256 Dual headphone outputs: 3.5mm and 6.35mm RCA line-out for connecting to external amplifiers or speakers Replaceable dual op-amp chips (OPA2134 and OPA1656) Compact and durable aluminum alloy housing Model: AIYIMA DAC-A5 MAX DAC Chipset: ESS ES9018K2M Headphone Amplifier: TPA6120 with NE5532 op-amp Bluetooth Chipset: Qualcomm QCC5125 Bluetooth Version: 5.1 Supported Bluetooth Codecs: SBC, AAC, aptX, aptX-LL, aptX-HD, LDAC PC-USB Sampling Rate: Up to 32-bit/384kHz PCM, DSD256 supported Signal-to-Noise Ratio (SNR): >118dB Total Harmonic Distortion (THD): 0.005% Headphone Output Power: 500mW @ 32O Headphone Impedance Support: 16–600O Audio Inputs: USB, Optical, Coaxial, Bluetooth Audio Outputs: 3.5mm and 6.35mm headphone jacks, RCA line-out Power Supply: DC 12V Dimensions: 125 x 133 x 33 mm Weight: 458 g What's in the Box: 1 × AIYIMA DAC-A5 MAX Headphone Amplifier 1 × 12V Power Adapter 1 × Bluetooth Antenna 1 × USB Cable 1 × Optical Cable 1 × User Manual
