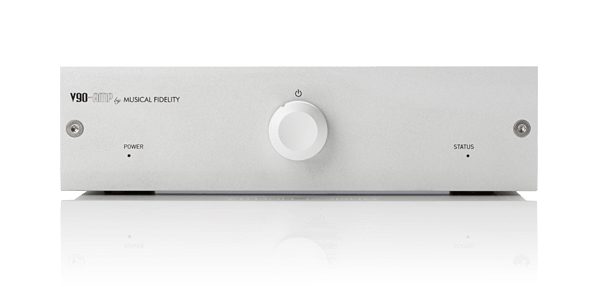

V90-AMP - Overview

The V90-AMP is truly an amplifier for the modern world. Offering both USB and traditional inputs it delivers a big sound from a small, discreet unit that fits in easily with any room decor.

Auto selection of inputs and simple, combined connections make the V90-AMP suitable for a wide range of input sources such as computers, streaming audio devices and more traditional sources.

Music lovers will delight in the V90-AMP’s ability to deliver wonderful music in any location - be it in an office, study, bedroom or living room.

Specifications Audio Performance

Power: 20W /channel into 8 Ohms (Suitable for speakers 6 ohms minimum) THD: <0.1% typical 'A' weighted Signal/noise ratio: >85dB 'A' weighted Input impedance: 47KO Frequency response: +0, -3dB 10Hz to 20 kHz

Connectivity

Line level input: 1x stereo 3.5mm "jack" connector Optical input: 1x optical 3.5mm "jack" combined with line level input above USB input: 1x Type "B" asynchronous, 16-24 bits, up to 48kHz sample rate Speaker outputs: 2 pairs spring loaded speaker terminals DC output (for future MF product only) Power input: 3-way "Cloverleaf" mains power socket

General

Power requirement: 90-250Vac universal mains Dimensions: Length 117mm / 4?" (including terminals and volume contro)l Width: 170mm / 6?" Height: 47mm / 1?" including feet Weight: Unit alone 710g / 1?lbs, packed in carton 1.38Kg / 3lbs

Also in the box

Optical adaptor (Toslink to 3.5mm jack) Analogue adaptor (2xRCA to 3.5mm jack) "Cloverleaf" Mains lead Instruction Manual

ICOM is Musical Fidelity official retailer in NZ, entire Musical Fidelity range can be demo in our Hi-End showroom by appointment. This unit is BRAND NEW, in a sealed box, includes a full 3 year NZ warranty. Free shipping within NZ.
