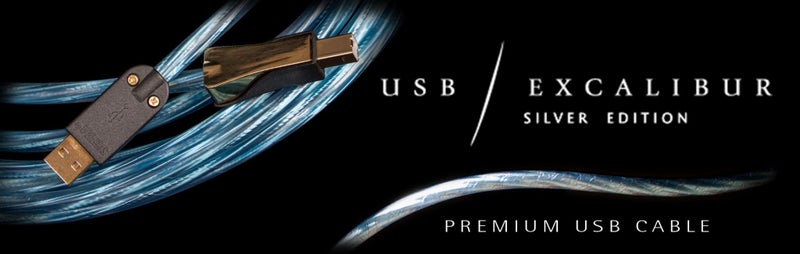

We have for a couple of years been developing an ultimate USB Cable, the result was USB Excalibur.

Our goal was simple, to make the world's best USB cable with no compromises or shortcuts.

Excalibur is a premium high speed cable with improved data and power transmission. Both the data pair and the power pair are optimized for their purpose, transmit data and power.

The twisted data pair is made of PE isolated silver plated oxygen free copper wires. The silver layer is very thick, 3.8% of the total wire. Silver is great for high frequencies and high speed data transmission.

The construction of the power conductors are totally different compared to the data pair. To avoid power losses and to maximize the wire area we used 4 tin plated wires in a star quad configuration. Star quad design and the separete screen reduces any RFI greatly .

The USB plugs are fully shielded in Aluminium and are detachable to enable routing the cable in 16 mm conduits including the contact.

Technical Info

Standard USB 2.0 Hi-Speed Connectors USB A male ? USB B male Signal Direction Bi-directional Application Examples Computer peripherals, DAC's Data transfer rate 480 Mbit/s Solder Tin Almit SR-34 Super Cable strain relief Cable Clamp

Electrical properties

Number of pairs 2 pieces Lead area Power 4 x 0.24 / 23 Star Quad mm2 / AWG Lead area Data 2 x 0.24 / 23 Twisted mm2 / AWG Number of strands 19 pieces Strand dimension Ø 0.127 mm Lead material power Tin plated oxygen-free 5N copper Lead material data Silver plated oxygen-free 5N copper Insulation Low capacitance PE Shielding Aluminized PET foil Jacket Heat and age resistant PVC Flame retardant No External dimension Ø 7.3 mm

Electrical performance

Data transfer rate 480 Mbit / s Impedance 90 Ohm Velocity factor 0.66x C (speed of light)
