We are proud to offer our impedance aligned cable for digital audio convertors, music streaming from computers, multimedia players, among a lot of other devices offering a USB interface.

There is a great need for a standard specific, impedance aligned cable, since failed bit transmissions will be detected when listening to your music. The consequential error correction and number of transmission re-tries will leave audible traces.

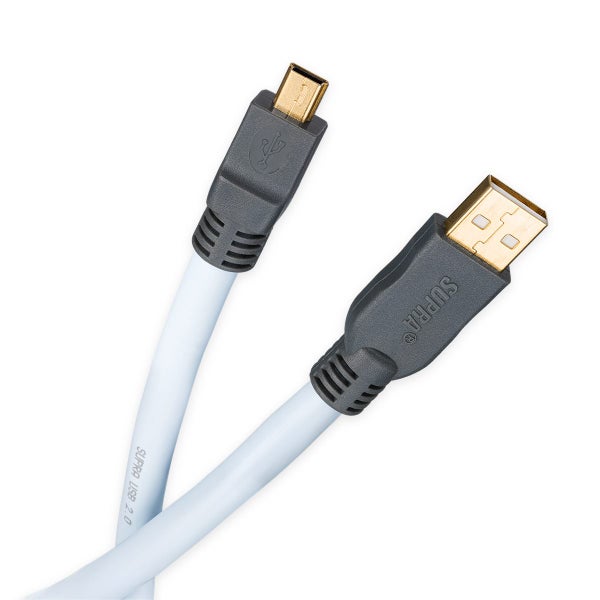

Many USB interface users are accustomed to USB interface limiting the distance between the devices, but not any longer. Supra USB 2.0 allows for distances up to 15 meters! The trick is the shielding, separate for each pair of leads, correctly twisted leads and the exact impedance alignment of 90ohm, which is vital for USB applications and jitter-free transmissions.

Supra USB 2.0 will reward you with a dynamic, rich and detailed music experience.

Features & benefits

Long cable approval - long distances between devices without signal degradation Correct data transfer - Excellent sound and rapidly working data peripherals without drop-outs Perfect shielding and twinning - minimum signal degradation, a condition for the above Robust type A and type B connectors - reliable, long service life Made in Sweden! - Modern research, production and quality

Electrical properties

Number of pairs 2 pieces Lead area 0.24 / 23 mm2 / AWG Number of strands 19 pieces Strand dimension Ø 0.127 mm Lead material Tin plated oxygen-free 5N copper Insulation Low capacitance PE Shielding Aluminized PET foil Jacket Heat and age resistant PVC Flame retardant No External dimension Ø 7.5 mm

Electrical performance

Data transfer rate 480 Mbit / s Resistance 72 Ohm / km Capacitance 52 pF / m Impedance 90 Ohm Velocity factor 0.66x C (speed of light)
