Imported from USA, original purchase Germany. One previous owner, I have paid for this unit to be overhauled and serviced. Running perfectly as it should.

Condition Very Good. Cosmetic appearance consistent with its age, 1981 - ‘83

Manufacturer: Onkyo Model: M-5060 R Type: Power amplifier Years of manufacture: 1981 - 1983 Made in: Japan Color: Black Remote control: Power Consumption: Dimensions: 450 x 174 x 422 (WxHxD). Weight: 18,5 kg Original price approx.: 2'150 DM

Connections

Number of inputs: Line In: 1 V, 20 kOhm Number of outputs: Headphones: 8 Ohm 2 pairs of speakers

Specifications

Music power: 780 watts total into 4 ohms (DIN) 430 watts total into 8 ohms (DIN) 400 watts total into 8 ohms (DIN)

Sine power: 225 watts per channel, into 4 ohms (DIN). 145 watts per channel, into 8 ohms (DIN) 140 watts per channel, into 8 ohms (DIN)

Total harmonic distortion: 0.005% at rated power Attenuation factor: 180 (8 ohms,1 kHz) Frequency response: 1 Hz-100 kHz +0 dB, - 1.5 dB Signal-to-noise ratio: 94 dB (IHF A-202) Stereo channel separation: Input sensitivity: 1 V Input impedance: 47 kOhm

Special Features

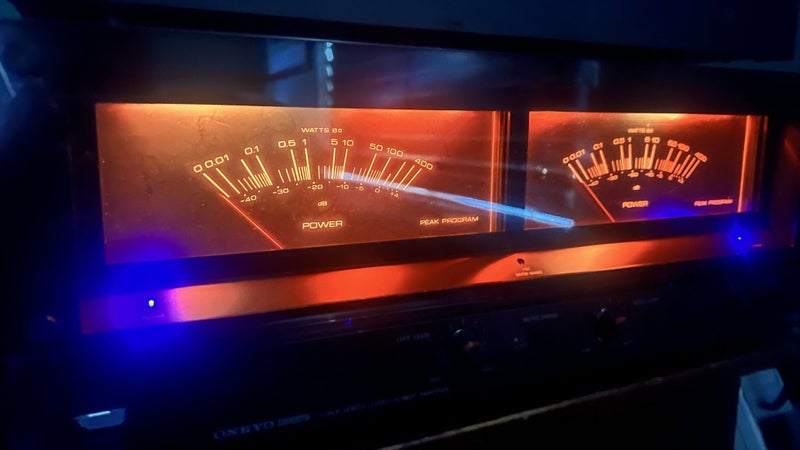

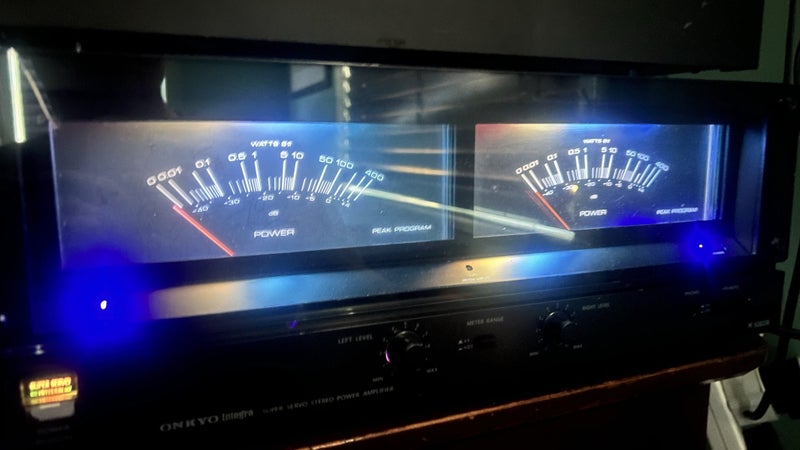

2 large VU meters
