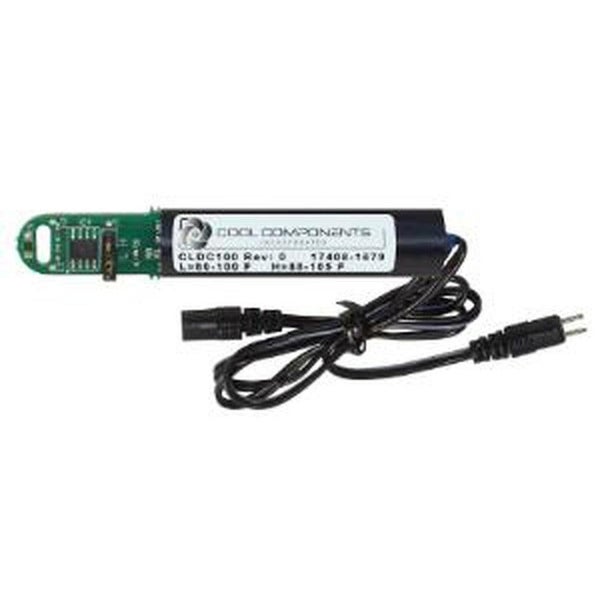

A professional grade 3 fan temperature controller for low voltage fans used primarily in audio video and other technology based cooling applications. The unit is easy to install and configure, basically 'set it and forget it' for many years to come. There is independent monitoring and variable speed control for 3 separate banks of fans. This controller is intended to protect an entire system with the ability to control ventilation fans as well as spot coolers simultaneously. General Specifications

• Dimensions (Unit): 3" x 1 5/16" x 3/4" (7.6 cm x 3.4 cm x 2 cm)
• Construction: ABS Black Housing w/Mounting Slots Power Specifications
• Power Connection: 2.1mm Coax Connector (Ensure Proper Polarity)
• Fan Connection: 2-Pin FastWire Connector System- Additional cables may are necessary for multiple fans and/or longer cable runs (Available Y, Tri & Extension Cables)
• Sensor Type: Remote Sensors - Measures ohms and can be extended further with only slight change in reading and function. 3 sensors total.
• Input Voltage: 12-13.5V DC
• Current - Amperage: 3 Amps Total Function
• Fan Banks are set and controlled independently
• Fan Modes: Mode 1 = 70oF, Mode 2 = 80oF, 3=90oF, 4=100oF, 5=110oF
• Alarm Modes: Mode 1 = Off, Mode 2 = 115oF, Mode 3 = 125oF
• Fan Speed Variance: Fans On at 50% Speed, 100% at +10oF .
