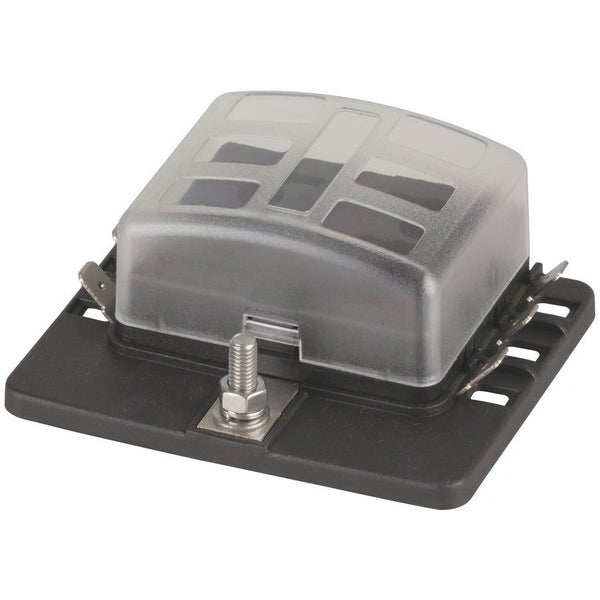

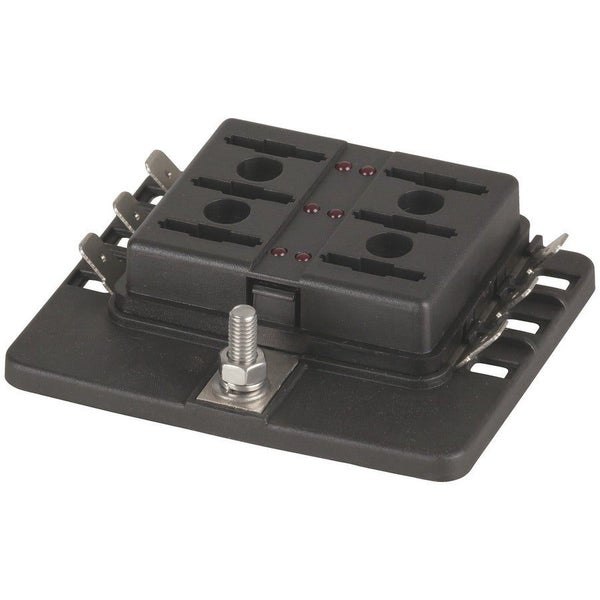

A convenient 6-way fuse block with integrated "fuse blown" indicator LEDs. The clear plastic cover allows you to quickly fault-find without disturbing your wiring. Includes convenient spade output connections for straight forward connections. Suitable for use in 12-24V systems, 30A max per fuse channel. Input cable up to 4-gauge. Uses standard automotive blade fuses, and includes a handy sheet of common labels, to make identification of connections even easier.

Features:

Input Terminal Rating: 32VDC @ 100A Max.

Input Wire Size: 4-6 AWG

Output Terminal Rating: 30A Max. per Circuit

Output Wire Size: 12-16 AWG

Fuses: Automotive Blade up to 30A

Specifications:

Width

90mm

Height

40mm

Weight

68g

Depth

70mm
