This item is in stock in NZ All units are tested prior to being sent

These tiny units are really handy if you are running a 12v or 24v battery system and need to power a lower voltage piece of gear, like a usb port or small dc fan. These converters are also great if you are looking to hardwire small battery powered equipment, almost anything that runs on AA, AAA or even 9v batteries has the potential to be wired into your dc system. Great for stuff like typical smoke and gas alarms or small vent fans

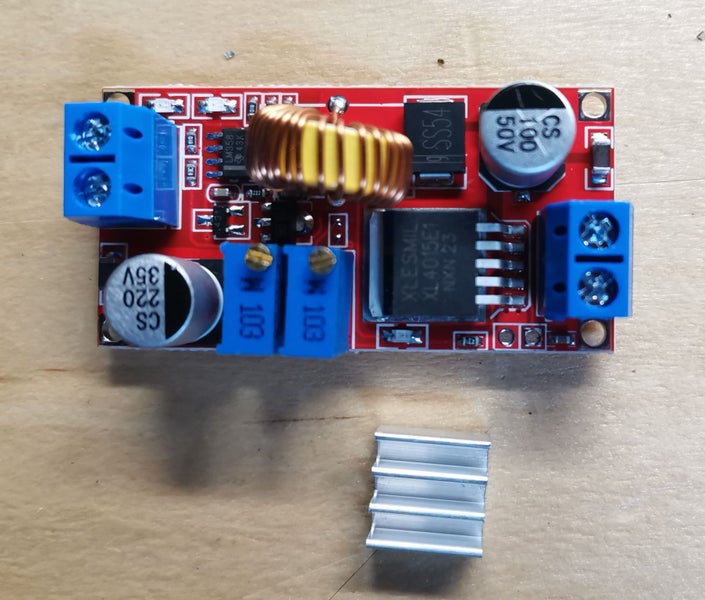

These boards have a wide range input and output voltage. Built to comfortably run upto 3 amps continuously or it can run at 5 amp with the addition of a small heatsink. A suitably sized heatsink is included with each unit.

Module type: XL4015

Size: 54mm L x 23mm W x 15mm H

Module performance and features:

Module properties: isolation step-down module (BUCK)

4-38 vdc input voltage: (please try not to exceed 38 v input) unit must have an input/output difference of at least 1.5 volts

Output voltage: 1.25-36 vdc continuously adjustable

Output current: 0-5 A

Output power: it is recommended that use from 3 to 5 amp that a heat sink is added. Short term work above 3 amp is possible.

Working temperature: - 40 ~ + 85 degrees

Working frequency: 180 KHZ

Conversion efficiency: up to 96% (efficiency and the input, output voltage, current and pressure difference)

Power light: yes

Short circuit protection: (limit current 8 a)

Overtemperature protection: (overtemperature automatic shut off output)

Input reverse connect protection: no

Installation method: 2mm terminal holes

Connection: screw terminals

Note: for a 4 amp continuous use, a heat sink should be added in order to guarantee output stability
