Summary

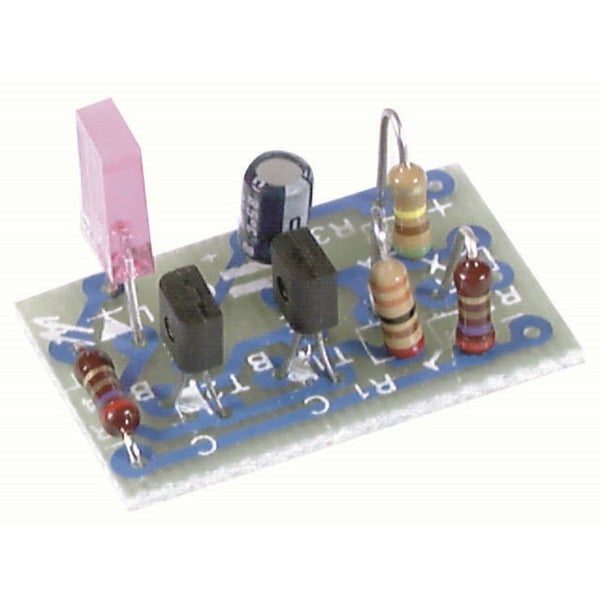

The Liquid Level Sensor Kit B192 detects liquid presence by shorting two contacts, which illuminates an LED. It is suitable for applications such as overflow alarms and rain detectors. The kit includes a Kwik Kit PCB and all necessary electronic components. Assembly is required.

For relay output to operate lights, sirens, or other warning devices, connect the Relay Card KG-9142.

Features

• LED illuminates when two contacts are shorted by liquid
• Suitable for overflow alarm and rain detector applications
• Can be connected to Relay Card KG-9142 for relay output
• Kit includes Kwik Kit PCB and all electronic components
• Assembly required

Specifications

• Estimated Construction Time: 15 min
• Kit Form: Short Form (circuit only)
• Kit Group: General Projects
• Difficulty: Simple
• PCB Width: 15 mm
• PCB Length: 45 mm
• Tools required: Soldering Iron

Documents

The following documents are available to download from the Folders website:

• Datasheet
