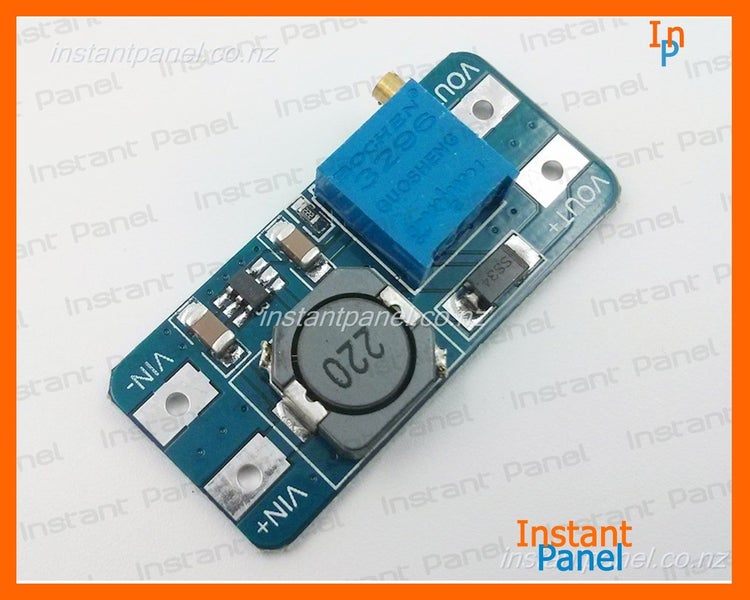

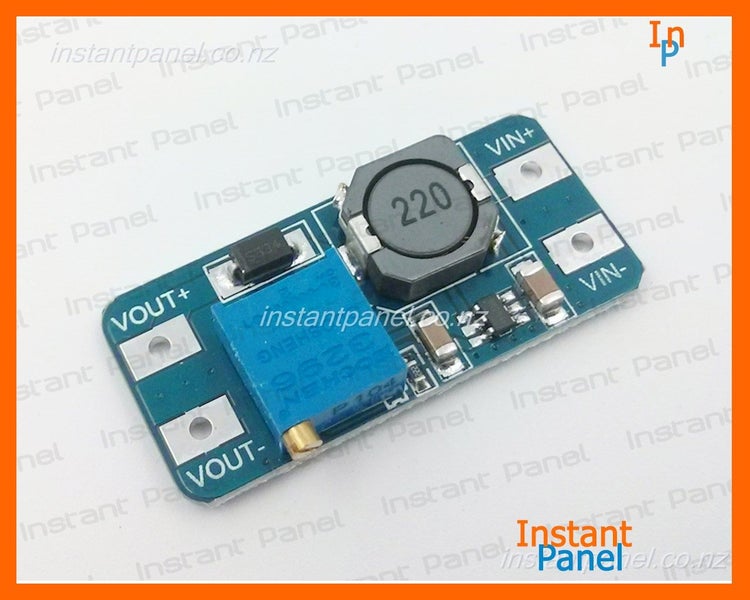

This is a non-isolated step-up switch mode module, output voltage is fully adjustable. It's based on the LM2577 converter IC. Input Voltage : 3 - 34V Output Voltage: continuously adjustable (4-35V) Output Current: 2.5A (MAX) Input Current: 3A (MAX) Module size: 49 (mm) x 26 (mm) Input mode: IN + input positive level, IN-input negative The output manner: OUT + output positive level, OUT-output negative Adjustment method: first the right then the input power (3-34V, multimeter between) and then monitor the output voltage and adjust the potentiometer (clockwise turn buck counterclockwise turn boost) For the 12V output voltage :4-35V continuously adjustable

Pick up in Shirley area near the Palms Mall. We are a GST registered company, All prices include 10% Trade Me fees and GST. STOCK: this item is stocked in Christchurch. OTHER LISTINGS: please check our other listings for more interesting items at great price! PRICE MATCHING POLICY: Provide us the listing # and we can match their price. (T's and C's applied) WARRANTY: 1 year factory defect warranty
