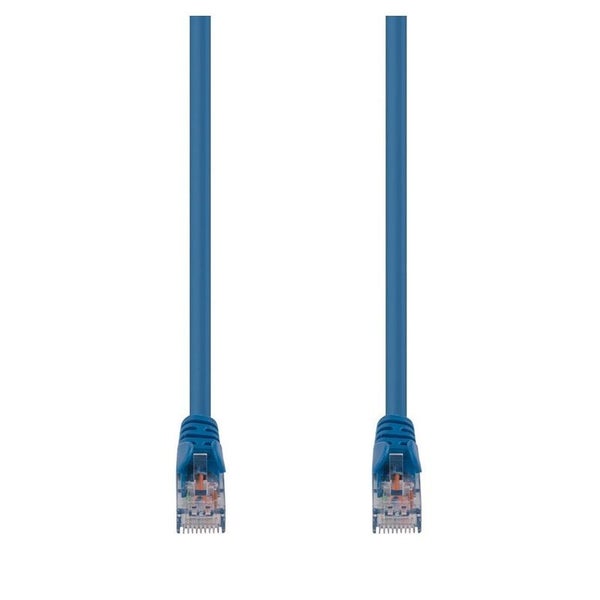

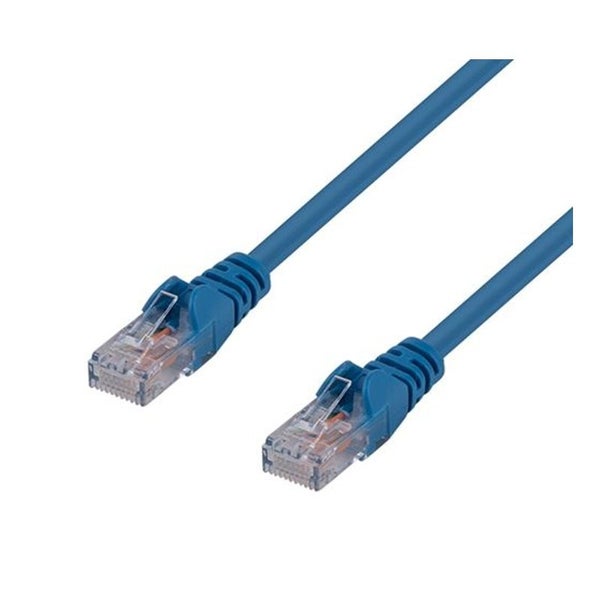

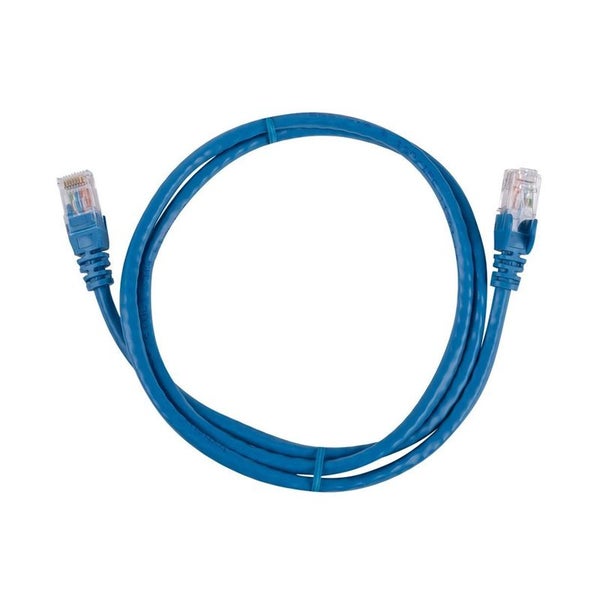

DYNAMIX 0.3m Cat6 Network Cable - Blue, UTP Patch Lead, T568A Specification, 250MHz (PLE-C6A-PP)

DYNAMIX 0.3m Cat6 Network Cable - Blue, UTP Patch Lead, T568A Specification, 250MHz (PLE-C6A-PP)

DYNAMIX 0.3m Cat6 Network Cable - Blue Description

DYNAMIX 0.3m Cat6 Blue UTP Patch Lead (T568A Specification) 250MHz 24AWG Slimline Snagless Moulding with Unshielded Gold Plate Connector.

The DYNAMIX Cat6 UTP patch leads conform to the ANSI/TIA-568.2 specification. Patch leads are wired to the T568A pin-out specification. These DYNAMIX patch leads are made of premium quality, long-lasting materials. UTP 24AWG stranded conductors for flexibility. Bandwidth rating of up to 250MHz ensures compatibility with Ethernet 10BASE-T, 100BASE-TX (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 1000BASE-Tx, peer-to-peer, & any other applications that utilize networking cables including telephony, home automation and long-distance video transfer technologies like HDMI over Ethernet.

APPLICATIONS:

• 10BASE-T, 100BASE-Tx, 1000BASE-T, 1000BASE-Tx Ethernet
• 100VG (Voice Grade), Any LAN (IEEE802.12), 155/622 Mbps ATM
• 250MHz Broadband Video
• Voice, ISDN

APPROVALS:

• 3P / ETL Certified ANSI/TIA-568.2-D Category 6 Testing Performance Requirements
• UL/cUL Listed

Feature

• Produced by an ISO9001 and ISO14001 certified manufacturer
• 100% tested, performance verified by 3P, UL Listed
• Covered by a lifetime warranty
• Operating temperature range: -20oC~60oC
• RJ45 (8P8C) plug with 50 micro inch gold plated connectors
• 70P PVC moulded boots

Additional Information

Product Manufactured by: Dynamix

Product Found in: Ethernet Cables

Cackle Part Number: 500034

Manufacturer Part Number: PLE-C6A-PP

Estimated delivery time 2-4 business days
