DYNAMIX UPS - Defender 650VA 390W Line Interactive (UPSD650)

DYNAMIX UPS Description

DYNAMIX UPS - Defender 650VA 390W Line Interactive (UPSD650) - DYNAMIX Defender 650VA (390W) Line Interactive UPS, 936J Surge Protection, 2x NZ Power Sockets, Netguard Smart Monitoring. LCD Status Display.

The Defender range uses Automatic Voltage Regulation (AVR) to minimise the effects of fluctuations in input voltage protecting your valuable equipment from power line disturbances. The stylish LCD display, user-replaceable battery and two Australia/NZ sockets make the Defender the complete package at this level. The Defender USB communication port is compatible with Synology NAS products. NetGuard(TM) UPS management software included.

DYNAMIX UPS Feature

• Surge Protection, Best in its Class

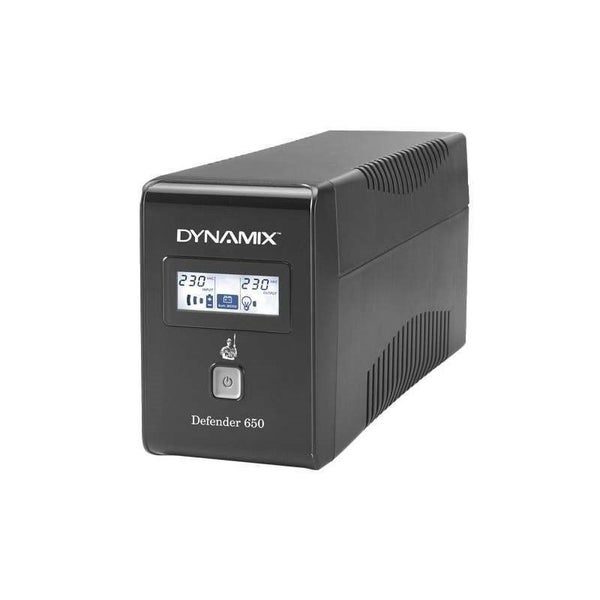

• LCD Status Display

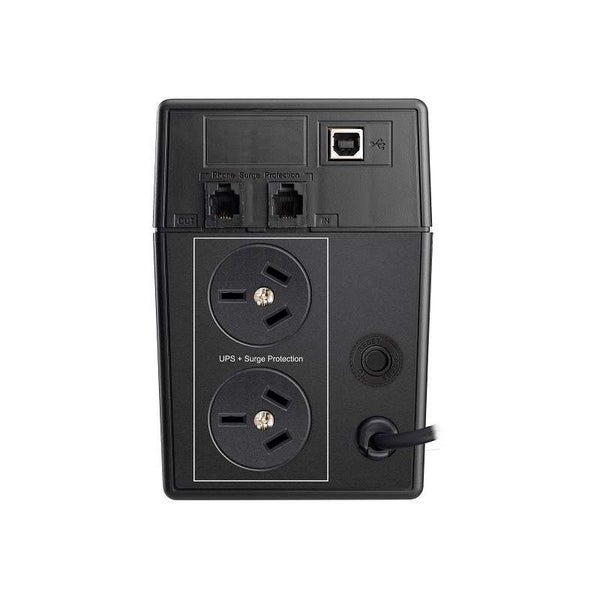

• Australian/NZ outlets for UPS and Surge protection (x2)
• Buck and boost AVR for voltage stabilisation
• User replaceable battery
• Silent Operation (No fans included)
• Auto restart when AC returns
• Off-mode charging
• Cold start function
• USB communication with sophisticated NetGuard(R) software
• LCD Status Display

Technical Specifications

Capacity

650V A / 390 W

Topology

Line Interactive

INPUT

Voltage

240V AC (Nominal)

Voltage Range

177-290V AV

Frequency Range

50/60Hz5Hz (Auto Sensing)

OUTPUT

Output Voltage

240Vac10%

Frequency

AC mode tracks utility.

Battery mode 50Hz1%

Frequency Range

50Hz or 60Hz1Hz

Transfer Time

6ms (Typical)

Waveform (Battery Mode)

Simulated Sine Wave

Outlets

2x Surge Protection + UPS

BATTERY

Battery Type & Number

12Vx9AH (x1)

Typical Recharge Time

6 hours recovery to 90% capacity

Backup Time (50% Load)

13min

PROTECTION

Full Protection

Overload, discharge, ther...
