Description

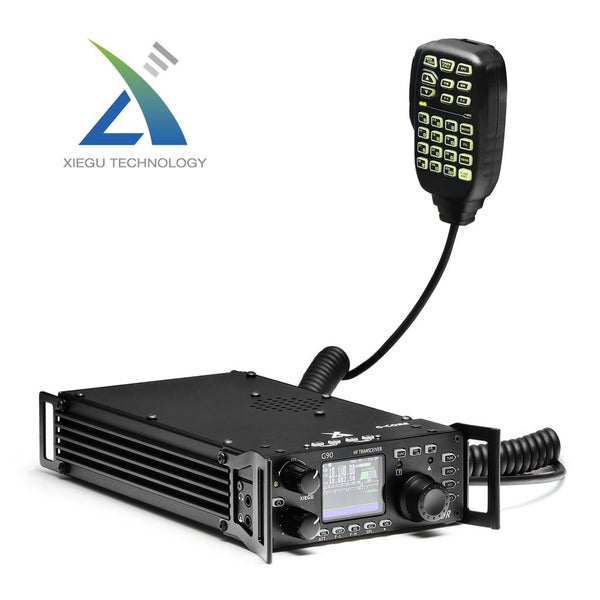

Welcome to the Xiegu G90 HF Amateur Radio Transceiver covering 0.5-30MHz with up to 20 Watts on modes SSB/CW/AM/FM and includes a built-in Auto Antenna Tuner.
** RSM Licenced to Supply Unrestricted Radios # 259612 - Callsign ZL3TOO **
THIS UNIT WILL ONLY BE SOLD TO QUALIFIED AMATEUR RADIO OPERATORS AND MUST ONLY TRANSMIT ON AMATEUR FREQUENCIES. THE PURCHASER MUST PROVIDE PROOF OF THEIR AMATEUR RADIO QUALIFICATION. IF YOU DON'T HAVE AN AMATEUR RADIO (HAM) LICENCE PLEASE DON'T PURCHASE OTHERWISE WE WILL REFUND YOUR PURCHASE.
The G90 features a panel + top button construction and all operations are optimized for ease of use. Easy control all directly through the buttons and multi-function encoder. The screen display is rich in content, clear at a glance and with a real-time spectrum display and a selection of signal conditions can be monitored.
The detachable display unit allows flexibility in positioning the transceiver.
Features
High performance front end narrow band preselector 1.8 inch high brightness colour TFT LCD screen ±24k bandwidth spectrum display, waterfall display Detachable display unit Built-in wide range automatic antenna tuner
Options for an additional add-on to interface the baseband I/Q output to connect with any external devices that can handle baseband I/Q, including sound card-based or PC-based applications such as XDT1.
Specifications: Operating voltage range: 12 ~ 15V DC Standby receive current: 750mA @ Max Working modes: SSB/CW/AM/FM Transmit working current: 8A @ Max Operating temperature range: 0 ° C ~ 55 ° C
Receiver: Receive sensitivity: better than 0.25uV @12dB Sinad (PRE: ON) Machine dynamic range: 90dB Adjacent channel suppression: 60dB Audio output power: 0.5W@ 4O
Transmitter: Amateur bands 1.8 to 29.999 MHz RF output power: Up to 20 Watts Spurious suppression: =50dB Carrier suppression: =40dB Sideband suppression: =50dB
** ALL ITEMS EX STOCK FROM OUR CHRISTCHURCH WAREHOUSE **
