After my Father’s recent passing, we have been sorting through his shed. Dad was an avid radio enthusiast for over 60 years. We have done our best to give you all the relevant information, with the support of an amateur radio enthusiast.
We have now relocated all items to Auckland. We would prefer pick up, that way you can see other radios and transmitters that will be coming up for sale. Working condition: Tested by Amateur Radio enthusiast and is working Missing or damages: Some Usage Marks, please note that my Dad did make some modifications to some of the radios and receivers. We have done our best to indicate this.

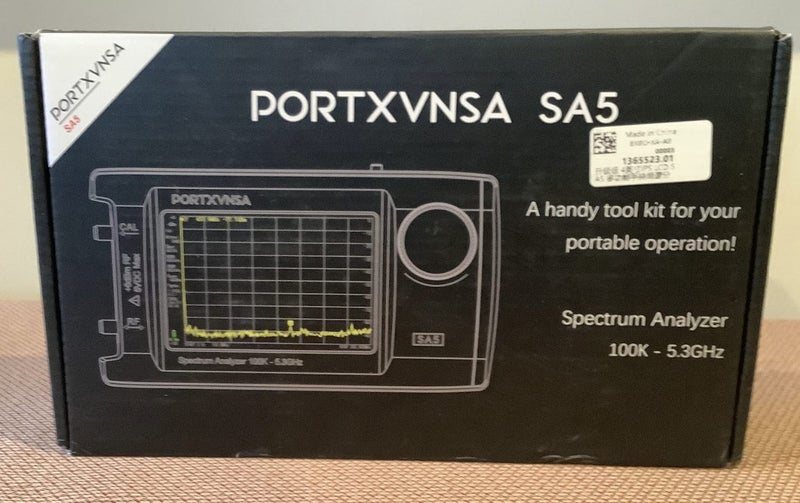

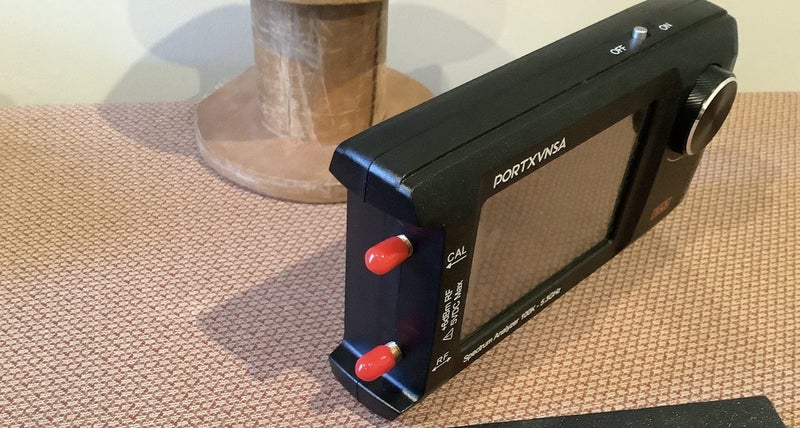

SA5 PORTXVNSA Spectrum Analyser Screen Size: 4 inches IPS LCD, featuring a large knob for easy operation. Spectrum Analyzer: Normal mode:0.1-800MHz, Ultra mode:provides level calibration up to 5.3GHz, and can observe signals up to 12GHz. Signal Generator: Outputs sine waves between 0.1-800MHz, square waves up to 4.4GHz, or RF test signals up to 5.3GHz when not used as a spectrum analyser. Switchable resolution bandpass filters: from 200Hz to 850kHz. Optional LNA: Built-in 20dB Low Noise Amplifier (LNA). Spectrum Display: Display up to 450 points, Display four independently configured trace Storage: MicroSD card slot for storing measurements, settings, and screen captures(SD card Not includes).

Specifications: Input Frequency Range 100kHz to 800MHz in normal mode; up to 6GHz with ULTRA mode enabled Input Impedance 50 ohm when input attenuation set to 10dB or more Input Attenuation Selectable manual and automatic input attenuation between 0dB and 31dB in 1 dB steps when LNA not active Maximum DC Input ±5V DC
