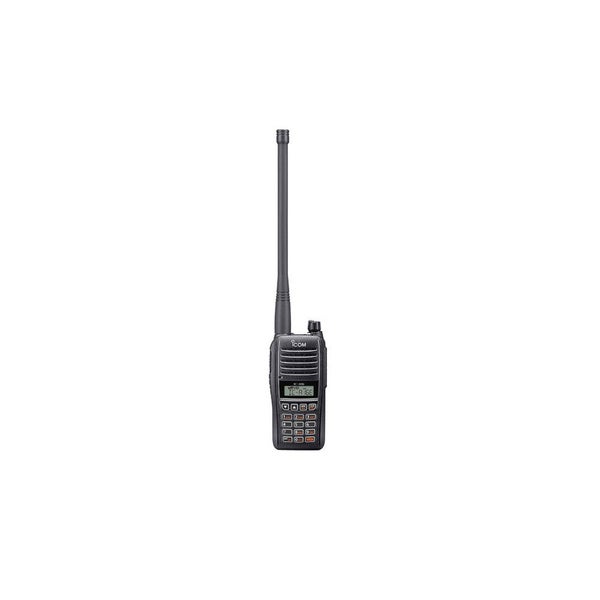

8.33/25 kHz Ground to Air Radio with Class Leading 1500 mW Powerful Audio. 8.33 kHz and 25 kHz Channel Spacing. 1500 mW Loud Audio Provides Clear Communications. 6 W (PEP) /1.8 W (Carrier) RF Output Power. Large Capacity Battery Pack Provides 17 hours* of Long Battery Life. * With BP-280. Typical operation with TX : RX : Standby = 5:5:90. (Bluetooth OFF, backlight OFF) Compact, Waterproof Durable Body (IP67/54 and MIL-STD-810-G). General Frequency range TX/RX : 118.000-136.992 MHz Number of memory channels 200 channels Channel spacing 8.33 kHz*/25 kHz (* May differ depending on the country.) Type of emission 6K80A3E, 5K00A3E Power supply requirement 7.2 V DC Current drain (approximate) TX High 1.8 A RX Stand-by 65 mA typical Max. audio 650 mA Antenna impedance 50 Ohm (BNC type antenna connector) Operating temperature range -20oC to +55oC Dimensions (WxHxD) (Projections not included) 52.2 x 111.8 x 34.1 mm (with BP-280) Weight (approximate) 257 g (with BP-280) Transmitter Output power (at 7.2 V DC) 6.0 W (PEP), 1.8 W (carrier) Audio harmonic distortion Less than 10% (at 85% + 3 dB modulation) Harmonics spurious emissions Less than -36 dBm (Except for operating frequency 1 MHz.) Frequency stability 1 ppm Receiver Intermediate frequencies 46.35 MHz (1st), 450 kHz (2nd) Sensitivity Less than 0 dBu (at 12 dB SINAD with CCITT) Squelch sensitivity (Threshold) Less than 0 dBu Spurious response More than 70 dB Hum and noise More than 40 dB (at 90% modulation) Audio output power INT SP 1500 mW typical EXT SP More than 350 mW (AM 8 Ohm 60% modulation at 10% distortion) External speaker connector 3 conductor 3.5 (d) mm Measurements made in accordance with EN300 676-2.

Supplied Accessories BP-280 battery pack BC-213 rapid charger BC-242 AC adapter FA-B02AR antenna MB-133 belt clip Hand strap (* Not supplied, depending on the transceiver version.)
