** NEW FROM TECHOMAN **

Premium Quality Stainless Steel and 100% Brand new !

Perfect dual-band yagi base station antenna for the avid ham ( amateur radio ) operator. Excellent gain and built from quality stainless steel.

Fittings come to set for horizontal mounting. For vertical polarization a 50cm piece of pipe and additional mounting hardware is required which are not included and would need to be sourced locally - Mitre 10, Bunnings, etc Alternatively you could drill another set of mounting holes in the square section boom.

144 / 430 MHz ( VHF /UHF ) 50 watt (max) Yagi Base Station Antenna with Mounting Hardware.

Comes with all the mounting gear for the ideal base 144 / 430MHz antenna to fit up to a 2" water pipe.

Antenna requires assembly by following the enclosed instructions. A SWR meter will be required to do final driven element tuning.

Kit includes:

• Dual Band Yagi Antenna: 144 / 430MHz ( 2 metre / 70cm Bands)
• U bolts for up to 2" size pipe

Specifications:

• Frequency range:145/435 (2m/70cm)
• Gain: 9.5dBi (145MHz), 8.3dBi (435MHz)
• Elements: 145 MHz - 3 Elements and 435 MHz - 5 Elements
• Front to Back Ratio: Greater than 12dB
• Connector: N-Female
• Boom Length: 1.13m
• Weight: 0.87kg
• Max.power rating: 50W FM(Total)
• Impedance: 50ohms
• Mast diameter accepted: 30mm to 55mm

Package:

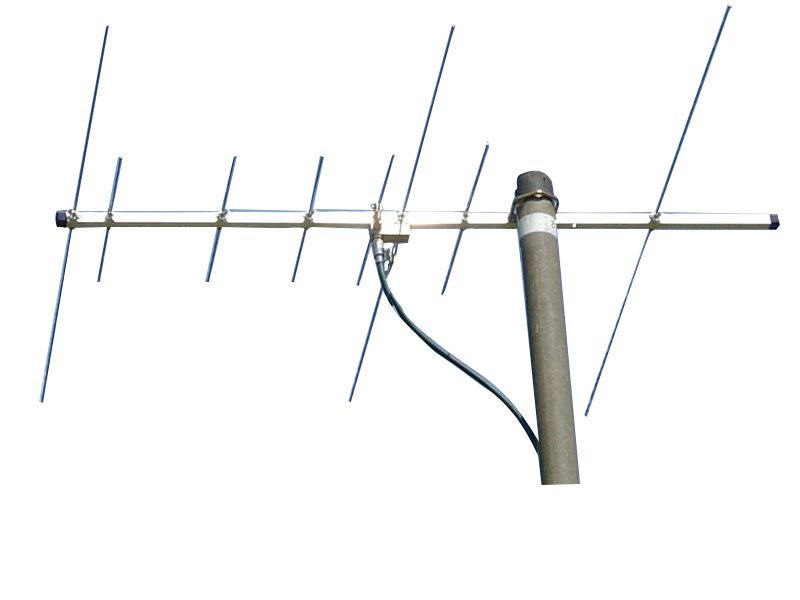

1 x TM-Y145/435S Base Station Radio Antenna as pictured:

** Cable available as extra from Techoman

Stainless Steel Yagi Amateur Radio or Scanner Professional Quality Antenna Aerial with High Gain

** ALL ITEMS EX STOCK FROM OUR CHRISTCHURCH WAREHOUSE **
