Premium Quality, similar specifications to the Diamond X30 with so239 female connector on the antenna base.

Perfect omni-directional base station antenna for the avid ham radio operator. Excellent gain and built solid..Perfect model for your home base station: 3.5dBi (146MHz) and 5.5dBi (435MHz)

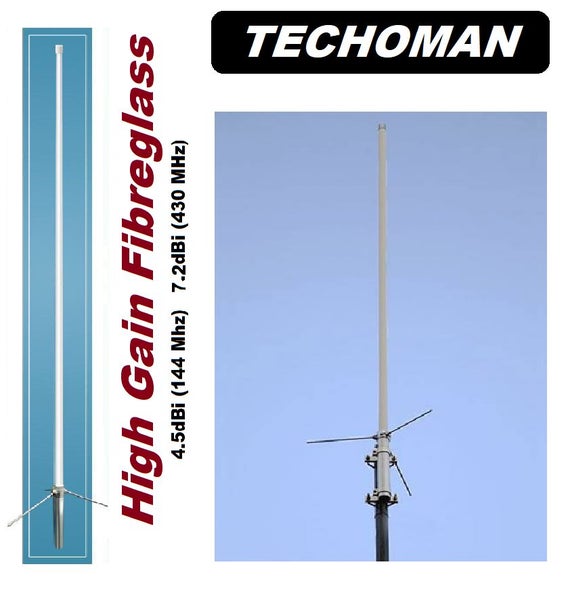

Dual Band 146 / 435 MHz ( VHF / UHF ) 200 watt Fibreglass Base Station Antenna with Mounting Hardware.

Comes with all the mounting gear for the ideal base station antenna to fit up to a 2.25" water pipe.

Kit includes:

• Dual Band Antenna: 146 / 435 MHz
• 3x Ground plane radials
• U bolts for up to 2.25" (30 to 62mm) size pipe

Specifications:

• Frequency range:146/436 MHz (2m/70cm)
• Gain: 3.5dBi (146MHz), 5.5dBi (435MHz)
• Connector: SO239 Socket
• Length: 1.3m / Radial length: 19cm each (3x radials)
• Maximum power rating: 200W FM (Total)
• Impedance: 50 ohms
• VSWR: Less than 1.2:1
• Rated wind velocity: 60m/sec (135 Mph)
• Mast diameter accepted: 30mm to 62mm
• Type: 1/2 wave C-Load (146MHz), 2x 5/8wave C- Load (435MHz)

Package:

1 x TM-X30U Base Station Radio Antenna as pictured.

** Cable available as extra from Techoman

Omnidirectional Amateur Radio or Scanner Professional Quality Fibreglass Antenna Aerial with High Gain

** ALL ITEMS EX STOCK FROM OUR CHRISTCHURCH WAREHOUSE **
