Description

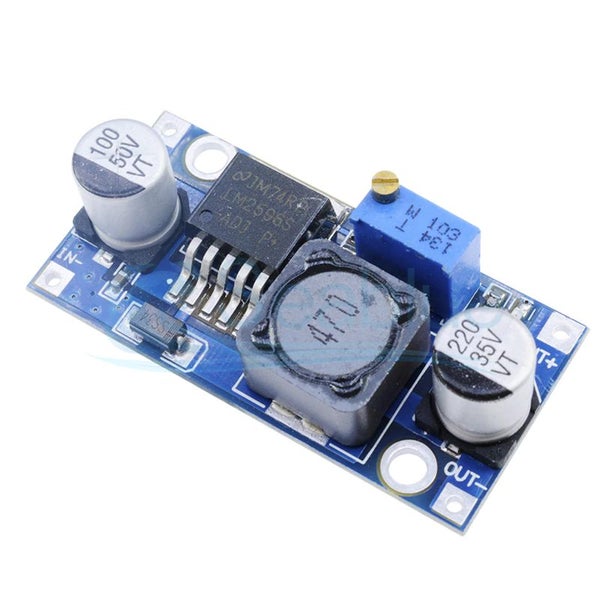

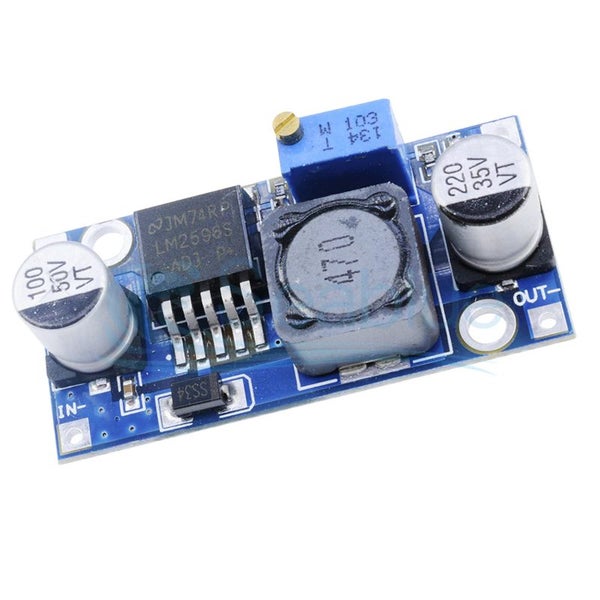

Small Size DC-DC Step Down Power Supply Module 3A Adjustable
DIY mobile power, monitor power supply, power buggies, camera power supply, car power, communications equipment supply, LED light supplies, battery chargers, aviation models, etc.
100% Brand new and high quality!
Specifications:
- Full load temperature rise: 40
- Load regulation: ± 0.5%
- Voltage regulation: ± 2.5%
- Input voltage:4-35V
- Output voltage:1.23-30V(Adjustable)
- Output current:Rated current is 2A,maximum 3A(Additional heatsink is required)
- Conversion efficiency: Up to 92% (output voltage higher, the higher the efficiency)
- Switching Frequency: 150KHz
- Rectifier: Non-Synchronous Rectification
- Module Properties: Non-isolated step-down module (buck)
- Short circuit protection: current limiting, since the recovery
- Operating temperature: Industrial grade (-40 to +85 ) (output power 10W or less)
- Dimension:48x23x14mm(LWH)
Package Included: 1 x LM2596 DC-DC Step-down Buck Converter
