100% Brand new and high quality!

4-Band Vertical Antenna Ground Plane type antenna made of aluminum alloy with an anti-oxidation coating. It covers 40/20/15/10 meters. The user can tune the antenna to the part of the band as needed.

The antenna has a single coax cable feed however each band is individually tuned with a low VSWR across the band. Through fine-tuning, the best (rock-bottom) SWR can be achieved on the user’s choice of frequency within the band.

No extra ground peg or radials are needed, the antenna has its own effective counterpoise replacing the need for radial wires.

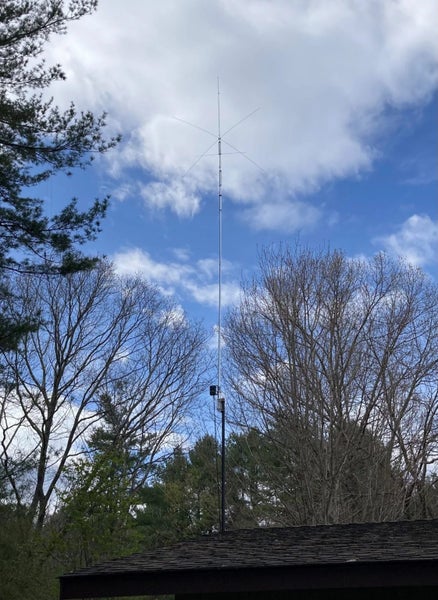

The VG4 is light, but built to last and is easy to install. Suitable even for homes with only a small space available. Perfect for roof, patio, small backyard, condo, motor home installation or portable for field days.

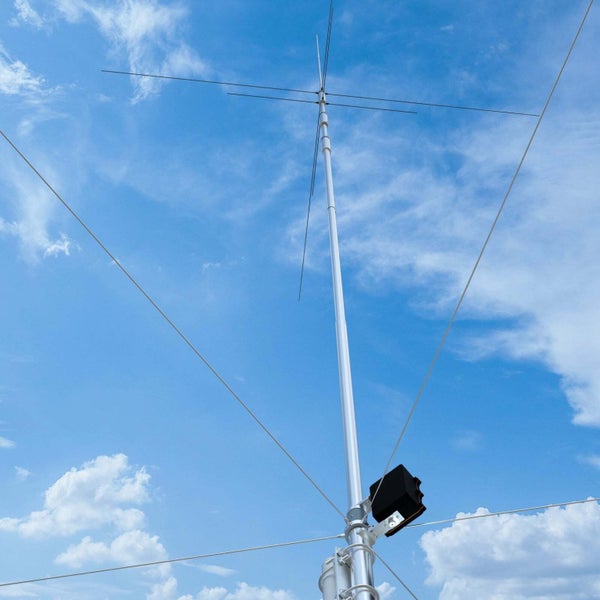

The VG4 is rated to a maximum 126km/hr wind speed, however in New Zealand severe wind can often exceed this rating and cause damage. We strongly recommend installing 3 or 4 nylon support lines (not supplied) from the upper section of the antenna to the surrounding ground or nearby structure(s) to increase the wind rating. Damage caused by wind or lightning strikes are not covered by warranty.

The top loading parallel resonators are used to give the best vertical-element efficiency. End loading of the lower HF band sections (capacitive hats) allow efficient operation with a reduced antenna height.

Features:

• Frequency bands: 7/14/21/28MHz (40m/20m/15m/10m)
• Antenna length: about 7.8m
• U Bolts to Pole Mount up to 54cm (2") diameter
• Radial length: about 2.7m
• Maximum power handling: 1000W PEP (CW500W, RTTY300W)
• Antenna impedance: 50 ohm
• VSWR:<1.5:1
• Antenna bandwidth: 40m: 150kHz / 20m: 450kHz / 15m: 800kHz / 10m: 1000kHz
• Rated wind speed: 35 m/s
• Connector: SO239
• Weight: about 7.0kg | 15.4lb
• Package size: 13x13x120cm
• Erection height: the distance from the ground is more than 3m (10ft)

Package:

1x XIEGU VG4 4-Band Base Station Vertical Antenna
