100% Brand new and high quality!

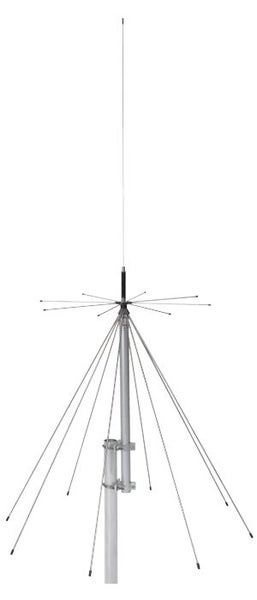

The TECHOMAN TM-ANT1300 Discone is an ultra-wide band antenna capable of covering 25 MHz to 1300 MHz continuously + 20 metre feed coaxial cable.

The exceptionally versatile frequency range of 25 - 1300 MHz is due to its concept, design and quality build. This wide frequency range makes it the perfect wide-band antenna for all popular uses, such as: Scanner Receivers, Amateur Operators, CB'ers, VHF and UHF Commercial, Aviation Air Band, VHF Marine, ISM, Cellular users and more ...

Easy to assemble, requiring only one Allen key (provided) with 2 support brackets for pole mounting, together with U bolts to allow mechanical mounting onto a vertical pipe up to 50mm diameter. Made of stainless steel, chromed brass and anodized aluminium to guarantee the best efficiency and performance these antennas are made to perform!

Antenna: RX bandwidth: 25-1300 MHz TX frequencies (@ SWR =2): 49.5-50.5, 120-180, 215-300, 415-465, 610-650, 710-1000, 1130-1300 MHz Impedance: 50 ohm Polarization: linear vertical Radiation (H-plane): 360° omnidirectional Gain: 0 dBi – 2.15 dBi @ lowest frequency Max. power (CW) @ 30°C: VHF: 300 Watts UHF: 200 Watts Materials: Stainless Steel, Chromed Brass, Nylon Height (approx.): 1600 mm Weight (approx.): 1140 gr Mounting mast: Ø 25-54 mm Connector: N-female, gold plated central pin

Cable:

• 50-ohm coaxial cable.RG58C/U type
• Standed centre conductor for added cable flexibility
• Typical Impedance : 50 +/-2 ohms.
• Nominal Diameter : 4.95 mm +/- 0.1mm.
• Flexible annealed tinned copper centre conductor with 19 strands of 0.18 mm Tinned Annealed Copper drawn from Class 110A copper to AS1574. Overall Diameter : 0.9 +/- 0.05 mm.
• Solid polyethene insulation - Solid Low-Density Polyethylene. Nominal Diameter : 2.95 mm +/- 0.1mm.
• Non–contaminating PVC sheath.
• Connectors - N-Plug to PL259 Plug

Package:

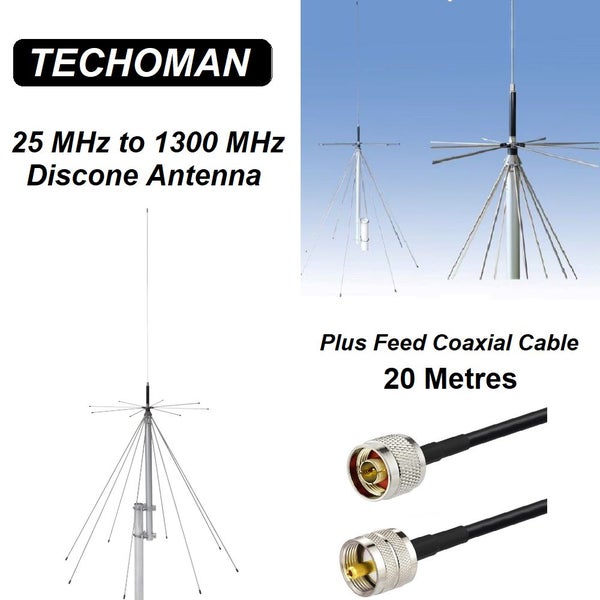

1x TECHOMAN 25 MHz to 1.3 GHz Discone antenna as pictured PLUS 20 metre Coaxial Feeder Cable
