Description

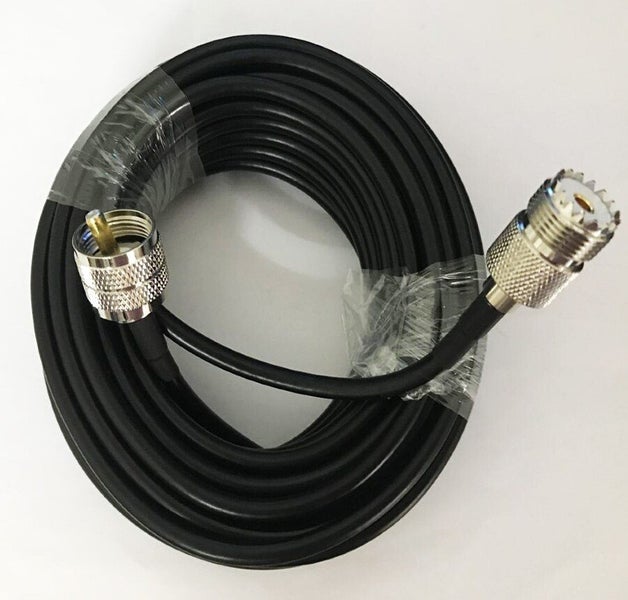

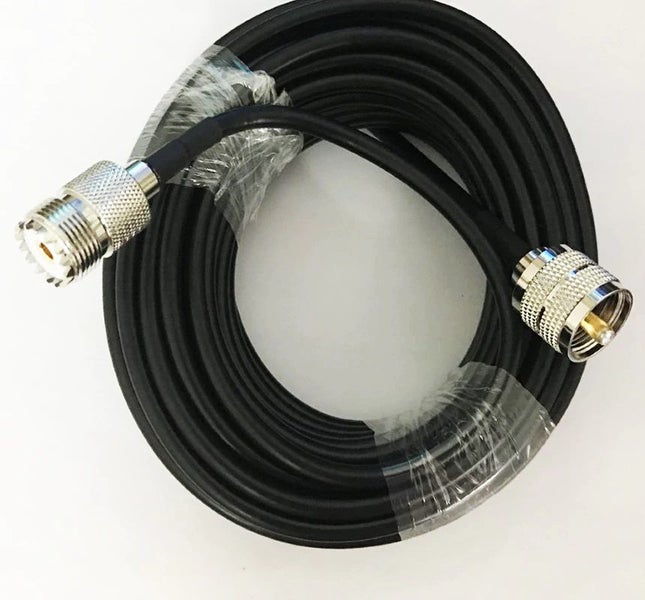

Radio Antenna Cable with PL259 and SO239 7.5 Metre Extension Coaxial Cable.
100% Brand new and high quality!
Specifications:
- Feed coaxial cable: 7.5 metres
- 50-ohm coaxial cable.RG58C/U type
- Standed centre conductor for added cable flexibility
- Typical Impedance : 50 +/-2 ohms.
- Nominal Diameter : 4.95 mm +/- 0.1mm.
- Flexible annealed tinned copper centre conductor with 19 strands of 0.18 mm Tinned Annealed Copper drawn from Class 110A copper to AS1574. Overall Diameter : 0.9 +/- 0.05 mm.
- Solid polyethene insulation - Solid Low-Density Polyethylene. Nominal Diameter : 2.95 mm +/- 0.1mm.
- Screen is Tinned Annealed Copper Braid to a min. coverage of 95%. (16x7x0.12mm).
- Non–contaminating PVC sheath.
- Velocity of propagation ratio: 66 %.
- Connectors - PL259 Plug to SO239 Socket
Package:
1x Antenna Coax Extension Cable with PL259 and SO239 7.5 Metres
