Description

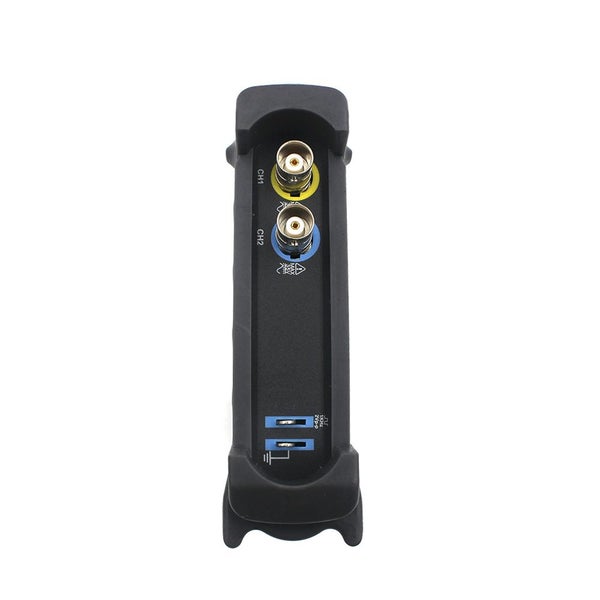

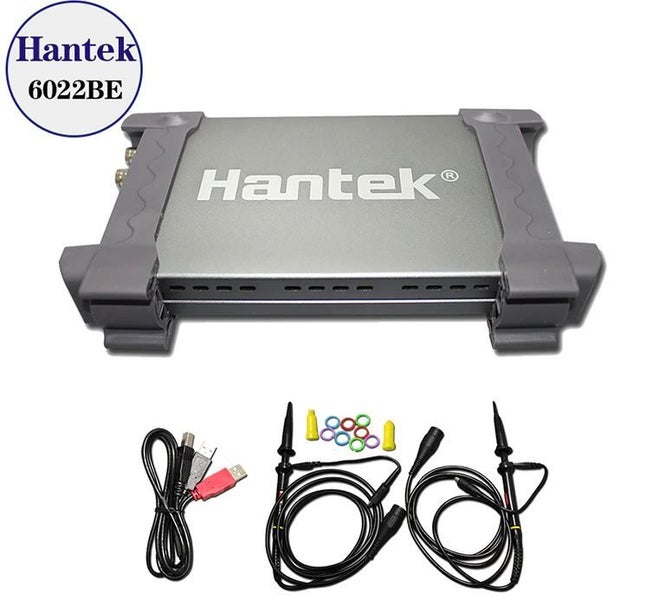

Hantek 6022BE 20MHz USB Oscilloscope

This is an excellent oscilloscope with many features of a high end oscilloscope without the high cost! Comes with USB cable, 2 oscilloscope probes, disk containing the instruction manual, drivers and PC software.

Ideal testing and measuring instrument for electronics engineers and developers, electronic laboratories, teaching and research.

Operating Systems: Windows 10, Windows 8, Windows 7, Windows NT, Windows XP, VISTA.

Hantex 6022BE Specifications:

Channels: 2 Bandwidth: 20MHz Input Impedance: 1MO 25pF Max. Sample Rate:48MS/s Vertical Resolution: 8Bit Gain Range: 20mV-5V, 8Steps DC Accuracy: ±3% Timebase Range: 1ns-9000s, 39 Steps Vertical Adjustable: Yes Input Protection: Diode clamping X-Y: Yes Trigger Mode: Auto, Normal and Single Trigger Slope: +/- Trigger Level Adjustable: Yes Trigger Type: Rising edge, falling edge Trigger Source: CH1, CH2 Sampling Selection: Yes Waveform Display: port/line, waveform average, persistence, intensity Network: Open/Close Vertical Mode: CH1, CH2, Dual, ADD Cursor Measurement: Yes Math: FFT, addition, subtraction, multiplication, division. Cursor: Frequency, Voltage Dimensions: 205mm (L) x120mm (W) x35mm (H) Accessories: Software CD, probes, manual, USB cord Operating System: Windows 10, Windows 8, Windows 7, Windows NT, Windows XP, VISTA.

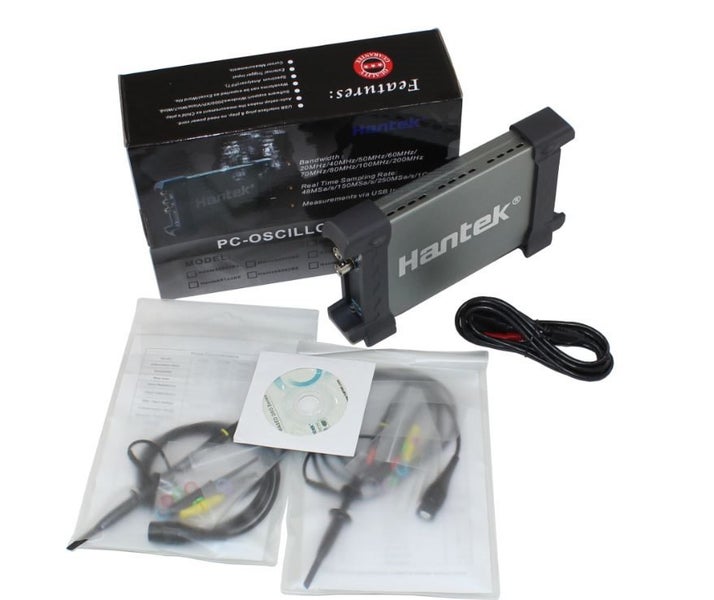

Package: 1 x Hantek 6022BE 1 x USB cord 2 x Clip Probes 1 x User Manual 1 x Installation CD 1 x Original box

** ALL ITEMS EX STOCK FROM OUR CHRISTCHURCH WAREHOUSE **

Details

Condition:
New

Shipping & pick-up options

Destination & description Price
Nationwide 3-4 days, Economy $10.50
Nationwide 3-4 days, Economy, Signature $14.00
Nationwide 4-7 days, Rural Standard $16.50
Nationwide 4-7 days, Rural Standard, Signature $20.00
Shipping more than one itemNo extra charge
Pick-up available from Christchurch City, CanterburyFree

Estimated delivery times in business days

Payment Options

Pay instantly by card, Ping balance or saved bank account.

What's Ping?

Afterpay

Four fortnightly interest-free payments.

What's Afterpay?

Other options

NZ Bank Deposit

Questions & Answers (1)

  • Hi, Can the software be accessed and downloaded online, without using the installation CD? paulp6 (58) • 3:28 pm, Sat, 18 Oct
