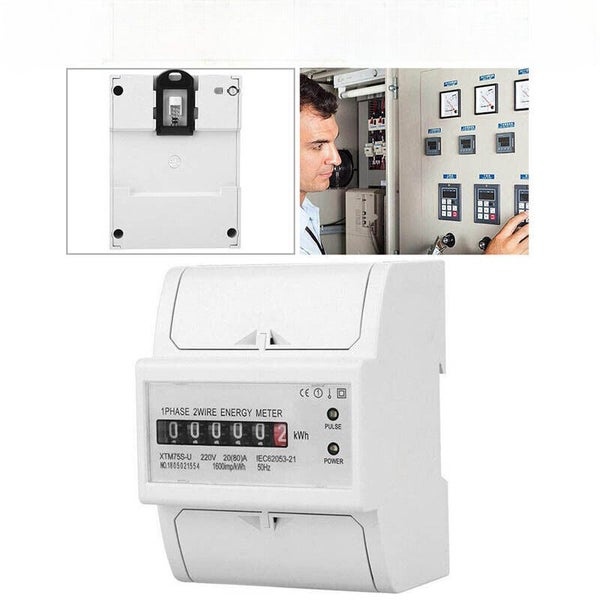

20-80A Digital Single Phase Electronic Energy KWh Meter Din-Rail Energy Meter

Feature:

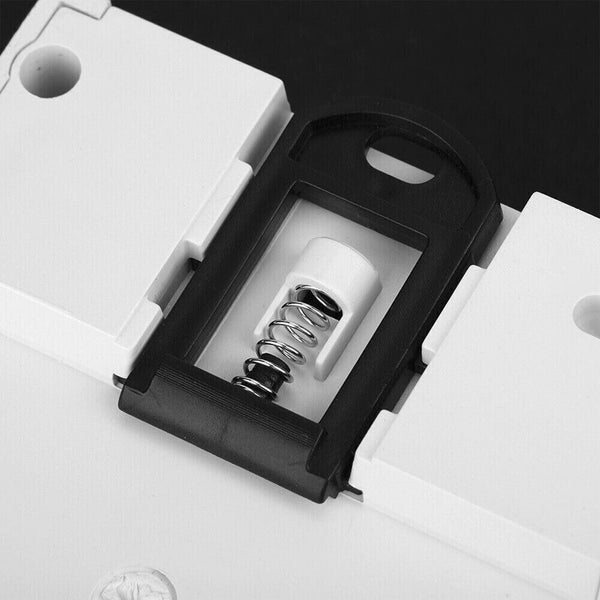

35mm standard DIN rail installation, in line with standard DIN EN50022.

Six-pole width (modulus 12.5mm), in line with standard JB/T7121-1993.

Can choose 5+1LCD digital display (99999.1kWh).

The standard configuration is a passive (polar) pulse output port, and you can choose to add a passive (non-polar) pulse output remote port, which conforms to the standard IEC 62053-31. The standard configuration does not detect the direction of load current.

You can choose to automatically detect the flowdirection of the load current and be indicated by a single LED.

One-way measurement of single-phase two-wire active energy consumption.

The direction in which the load current flows does not matter.

Comply with standard IEC 62053-21.

The standard short terminal cover, you can choose to extend the terminal cover to protect the safety of use.

Specification:

Model: XTM75S-U

Accuracy: Level 1

Voltage: 220V

Current: 20 (80) A

Insulation performance: AC voltage 4kv for 1 minute, 1.2 / 50us waveform pulse voltage 6kv

Size: 7.5 x 10 x 6.5 cm / 2.95 x 3.93 x 2.55 inch

Package Includes:

1 DIN rail electricity meter

Expected delivery: Approximately 7 days.
