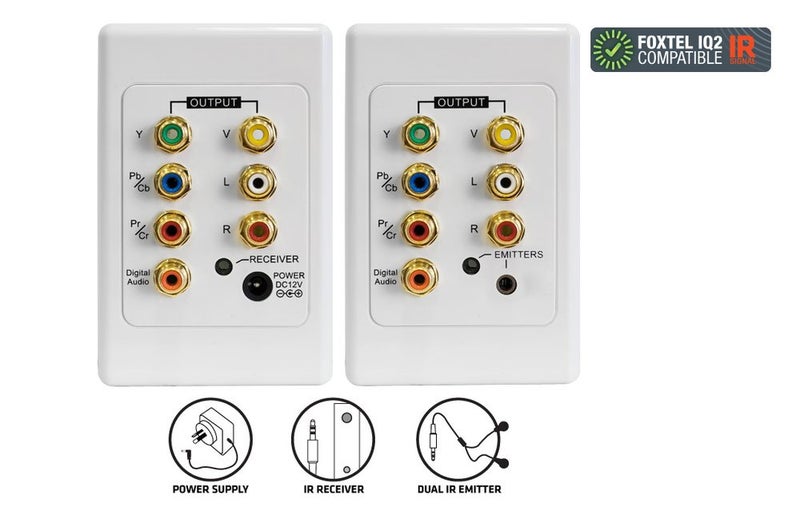

The KGE-1254D is designed to be surface mounted in in-wall composite/ component video, and stereo audio/digital audio with IR control applications.

Distributes your AV signals via economical CAT5 cable.

Interface:

Video: 1x RCA jack

Audio: 2x RCA jacks for Left and Right Audio

UTP: CAT5e

Impedance:

Video: 75 unbalanced

Audio: 600 unbalanced

UTP: 100 balanced

Bandwidth:

Video: DC~12 MHz

Audio: 50 Hz~15 kHz

Distance:

Audio/Color Video: Category 5e UTP cable up to 300 meters

Receiver:

Component video inputs (Y/ Pb/ Pr)

Coaxial digital audio input

Composite video input

Audio Left & Right inputs

3.5mm input for IR receiver

Power input

Interface:

Video: 3x RCA (Y/Pb/Pr) female connectors

Digital Audio: 1x RCA female connector

UTP: CAT5e

Impedance:

Video: 75 unbalanced

Digital Audio: 75 unbalanced

UTP: 100 balanced

Bandwidth:

Video: DC~60 MHz

Audio: DC~25 MHz

Distance: Over Category 5e/6 UTP cable:

720p video, up to 150m (total length, device-to-device)

1080i video, up to 150m (total length, device-to-device)

Digital Audio: up to 175 meters (total length, device-to-device)

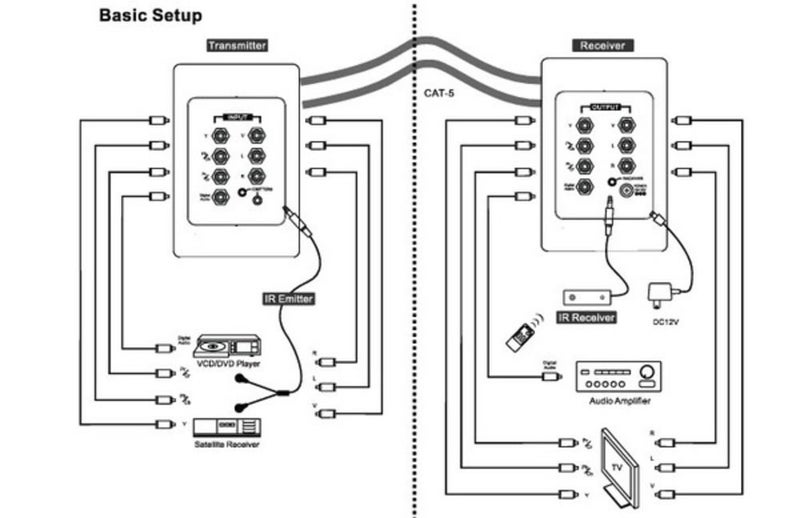

Connection between transmitter and receiver is established using RJ45 CAT5 patch cable.

IR receiver stick:

Works in areas with compact fluorescent lighting

lue IR confirmation LED

Wideband IR receives IR from many types of remotes

Self-adhesive tape for quick and easy fixing on any flat surface

3 meters cable with 3.5mm stereo mini-plug

Receive frequency range: 34 kHz to 40 kHz

Transmit frequencies: 38 kHz

Range On Axis 55ft to 80 ft (16.8m 24.4m)

30 Off-Axis 30ft to 55ft (9.1-16.8m)

Power:12VDC, 31mA max

Dimensions: 54L x 14W x 13H mm

Weight: 23g

NOTE: This IR extender is not compatible with the Foxtel iQ4 Bluetooth Remote.
