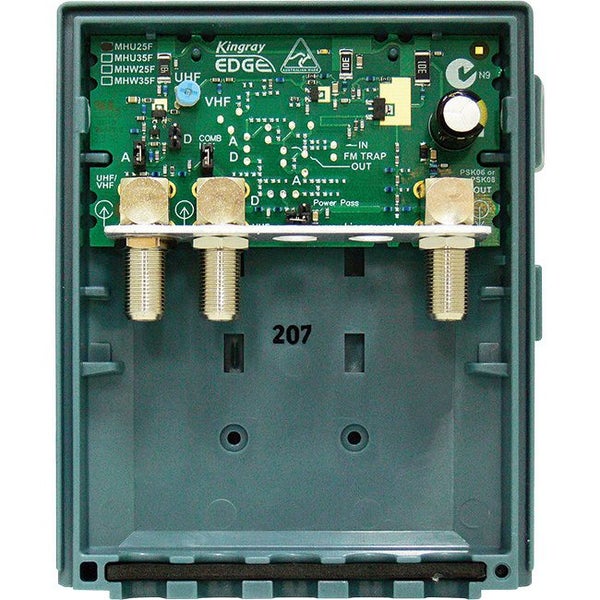

MHU25F 25DB UHF MASTHEAD F TYPE WITH LTE/4G FILTERING - KINGRAY are you protected from lte the mhu25f is a uhf masthead amplifier with the capabilityto diplex vhf, either from combined or separate vhf and uhf antennas; it has f connections and is part of the kingray edge series range. the kingray edge series has been engineered to provide a future proof solution with lte/4g filtering to maximise interference rejection. the range includes both wideband and uhf only models, all services above 694 mhz are filtered, rejecting lte transmissions. in addition to lte filtering most wideband models in the edge series include low band filtering to eliminate all services below 174 mhz the edge series is designed to meet the needs of the television reception industry now and well into the future.

Features: UHF amplifier with VHF diplexing. Separate or combined inputs. LTE filtering Gain control F type connections 100% weatherproof case.

Specifications: Frequency Range: VHF: 174 - 230 MHz, UHF: 520 - 694 MHz Maximum Gain VHF: -2 dB UHF: 25 dB Gain Control Range: UHF: 10 dB Maximum Output Level: 108 dBV @ - 60 dB IMR (DIN45004B) LTE Filter: -25dB @ 750MHz Input Connector F type Output Connector F type
