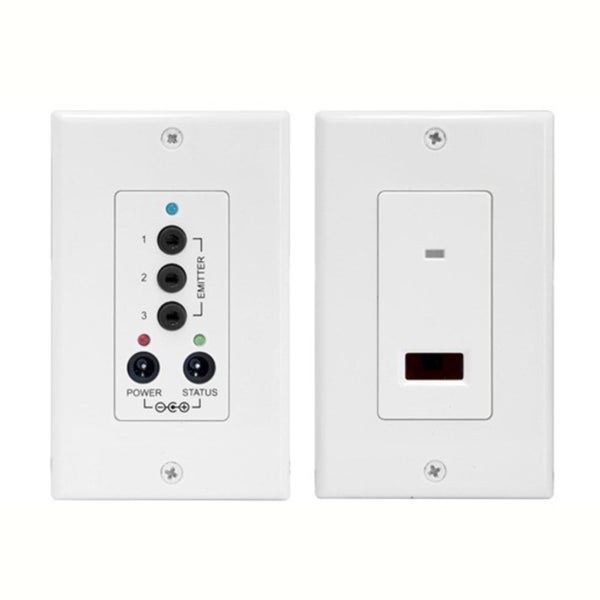

The KGE-IRS6A IR repeater wall plate kit connects the IR connecting block, IR receiver, IR emitter, and power supply together to interface the IR system to Audio/Video components.

With this setup, you are able to remotely control AV devices in different locations. Wall plates mount to a standard single gang electrical box using deco cover plates.

In-wall IR Connecting Block:

Three emitter output connections

Convenient IR confirmation LED

Status power connector with LED indicator

Power input connector with LED indicator

Large detachable IR receiver connection at the back

Specifications:

Dimensions: 70 (W) x 114 (H) x 40 (D) mm

Weight: 56gr

In-wall IR Receiver

Receives IR signals from a handheld IR remote control and relays this to the AV equipment for operation from another room.

Dual colour LED (Green for system status/ Blue for talk back)

Ultra-thin design mounts to any J-box or P-ring

Wideband IR receives signals from many types of remotes

Specifications:

Receive frequency range: 34 KHz to 40 KHz

Transmit frequency: 38 KHz

Power: 12 V DC, 30mA max.

Status Power: 12 V DC, 3mA max.

Dimensions: 70 (W) x 114 (H) x 16 (D) mm

Weight: 36gr

Range:

On-axis: 16.8m to 24.4m

30 off axis: 9.1m to 16.8m

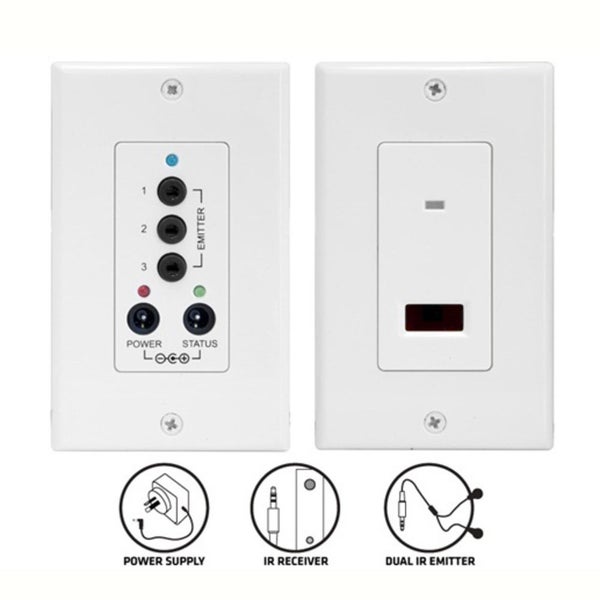

Kit includes:

In-wall IR Connecting Block

In-wall IR receiver

Dual IR emitter

Single IR emitter

Switch mode power supply

NOTE: This IR extender is not compatible with the Foxtel iQ4 Bluetooth Remote.
