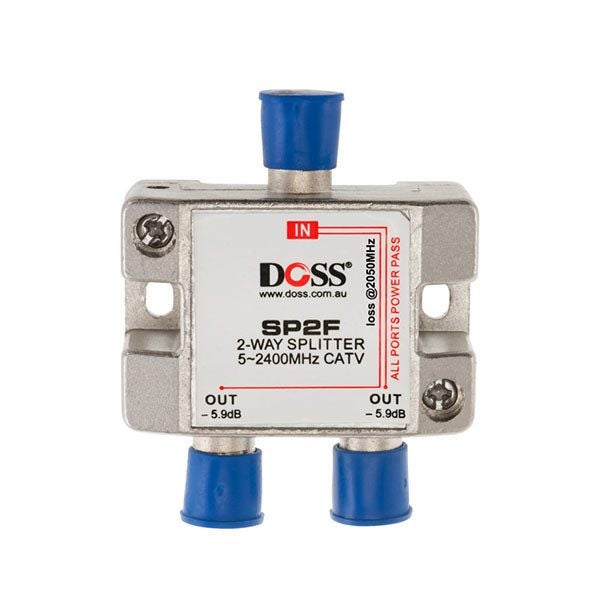

DOSS 2 WAY F SPLITTER OR COMBINER

High quality satellite & cable TV compatible 75ohm splitters in zinc diecast housing.

SPECIFICATIONS

"F" type connections designed to operate from 2GHz down to 5 MHz permitting use in interactive systems

Nickel plated zinc die-cast housings

Tongue & groove housing design provides high RFI shielding for ?120 dB

Frequency response of 5-2400 MHz

High precision machine threaded F-ports

Power pass 12 V DC, 500 mA all ports

Usable for special channels and return channels

Impedance: 75Ohm

For both VHF and UHF frequencies

Built in grounding block

No IR passing

Can be used to combine

Output dB loss was tested @ 2050mHZ

Note: Doss splitters will also function as combiners. When combining modulated signals, leave at least a 2 channel separation i.e. Channel 21 for the first channel and Channel 24 for the next etc. It is also recommended that if you also have an antenna connected to the system, you use a Digiair Pro when selecting the appropriate channels. The spectrum analyser function will display where there are the lowest levels of interference i.e. where the modulated should be placed in the radio spectrum.

PACKAGE CONTENT

1 x Doss 2 Way F Splitter Or Combiner
