Description

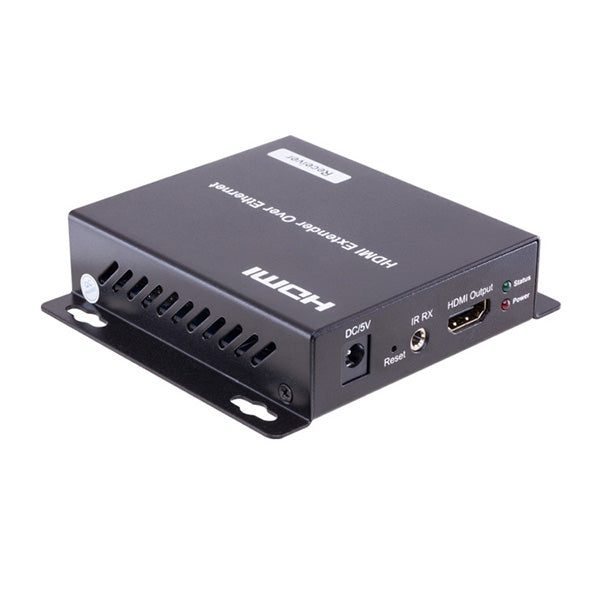

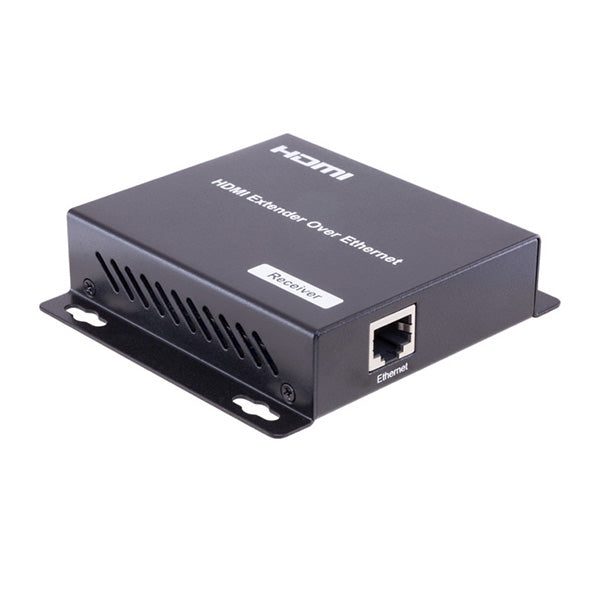

PRO2 HDMI EXTENDER OVER ETHERNET MJPEG COMPRESSION SPARE RECEIVER
This spare receiver is a budget option for extending HDMI source over network. It supports one to one and one to many operation.
FEATURES
Extends 1080p HDMI signals up to 120m over single UTP CAT5e/CAT6 cable
Supports point to point, point to many
HDCP compliant
With wideband IR (38-56k Hz) control
Supports TCP/IP protocol
With mounting ears
Default TX IP: 192.168.168.55
Default RX IP: 192.168.168.56
SPECIFICATIONS
Operating Temperature Range: -5 to 35oC
Operating Humidity Range: 5 to 90%RH (No condensation)
Input Video Signal: 0.5-1.0 Volts P-P
Input DDC Signal: 5 volts p-p(TTL)
Supported Video Format: DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p
Transmission Distance: 120m: 1080p 8-bit over CAT5e/CAT6 24AWG solid cable
Power Consumption: TX: 3 Watts, RX: 3 Watts
Dimension: 103.5 x 93.5 x 24.6 mm (L x W x H)
IR Frequency: 38K-56KHz
Net Weight: TX:220g, RX:220g

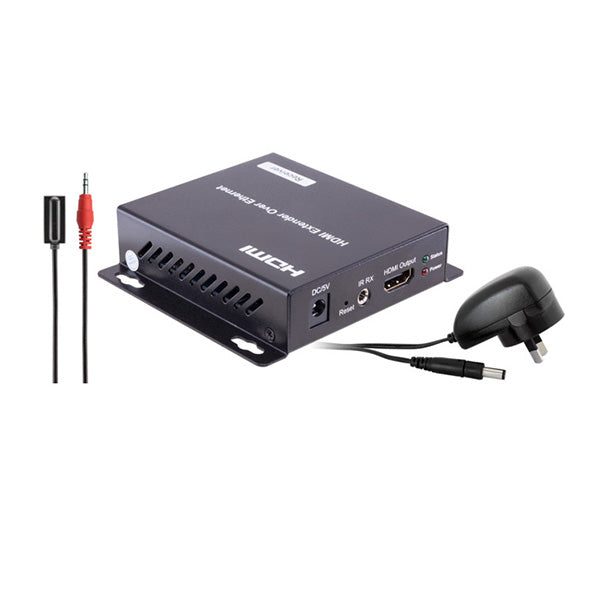

PACKAGE CONTENTS
1 x Pro2 Hdmi Extender Over Ethernet Mjpeg Compression Spare Receiver
