MPEG2 HD MODULATOR WITH HDMI COMPONENT COMPOSITE INPUTS

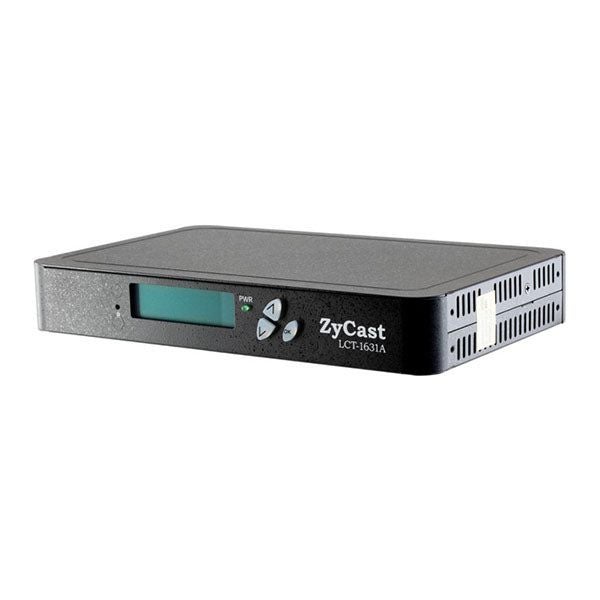

The LCT-1631A is a cost-effective, single input MPEG-2 HD Encoder/Modulator that converts Digital Video Broadcasting (DVB) high definition video and audio signals to COFDM. The unit's front-mounted LCD allows for easy configuration and adjustments.

This compact and economical modulator is perfect for multi-video distribution solutions in the commercial and institutional market (hotels, motels, sports bars, restaurants, hospitals, casinos, business and university campuses, digital signage, etc.) as well as home entertainment systems.

FEATURES

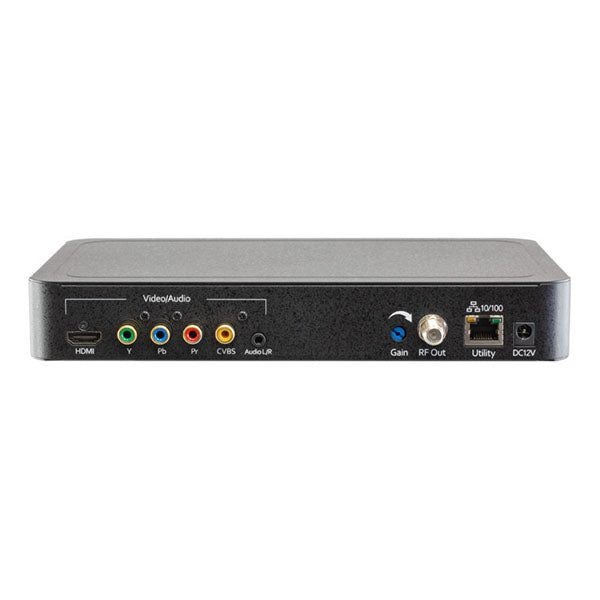

HDMI, Component, Composite Inputs, RF Output

Gain Control (20dB Manual Attenuation)

RJ-45 port for Web Management

Video resolution: Up to 1080i/1080p

Perfect, clean and clear HD picture on high motion video, sports, text crawls/rolls, etc.

Front Panel LCD

Cool & silent operation

SPECIFICATIONS

Video / Audio Input

HDMI 1.4

Connector: Single

Audio: Embedded PCM

HDCP Compliance (Test Mode): 1.4

Component / Composite

Connector: RCA x1 Set for Each

Audio: Analog 3.5mm (Phone Jack)

Video/ Audio Encoding Profile

Video

Video Codecs: MPEG-2 VBR

Bitrate (Adjustable)

DVB-T:

HD: 12.0 to 24.0Mbps

(Suggested Max. Bitrate 17Mbps for 16-QAM)

SD: 4.0 to 9.0Mbps

Resolution Output

Same as Input, Accepting Resolution as Follows:

1080p30 / 1080p25

1080i60 / 1080i50

720p60 / 720p50

576p / 480p

576i / 480i

Audio

Audio Codecs: MPEG1 Layer II / MPEG4 AAC /AC-3 Encode

Output

Standard: DVB-T

Connector: 1x "F" Female

Output Level: 95 dBuV Typical

(With 20dB Range Manually Adjustable)

Flatness Across Full Band: 2 dB Typical

MER: 38 dB Typical @ 480.5 MHz under DVB-T Mode

Output Impedance: 75 ohm

RF Output Return Loss: 10 dB Typical

ModulatorSTD: DVB-T (COFDM)

RF Mode: No...
