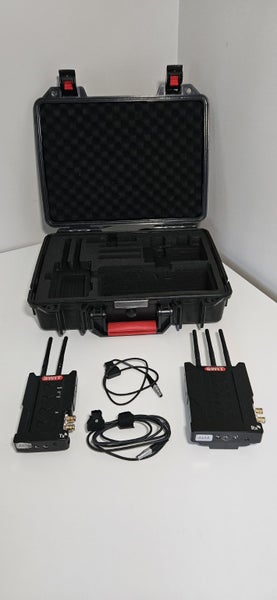

The SWIT CW-S150 wireless system is based on WHDI technology, which operates in the free band 5.1 - 5.9 GHz. The system uses dynamic frequency switching (DFS) and can transmit 3G/HD-SDI signals up to 1080p 50/60 resolution at a distance of 150m in direct line of sight with a delay of less than 1 millisecond (ms). The system is based on a purely hardware solution without the need for complex settings - plug'n'play. Thanks to its compact dimensions, it is also suitable for use on drones, cable cars, steadicams, etc.

The SWIT CW-S150 system supports the transmission of embedded audio in SDI, with the first two channels automatically transmitted.

The system operates in the free band 5.1 - 5.9 GHz using low transmission power. Thanks to DFS support, the system dynamically changes the frequency during transmission to achieve the best possible transmission. The receiver (RX) and transmitter (TX) are automatically paired, while the user has the option to purchase and pair three more receivers to achieve a multicast system with one transmitter and four receivers.

Features: Transmitter (TX): 1x 3G/HD-SDI input, 1x 3G/HD-SDI loop output Receiver (RX): 2x 3G/HD-SDI output Supported video formats: 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59,94/50 720p: 60/59,94/50 1080psf: 30/29.97/25/24/23.98 Operating frequency: 5150 – 5850 MHz Modulation: OFDM 16QAM Maximum distance: approximately 150m in direct line of sight Delay: max. 1ms Receiver/Transmitter consumption: max. 9W/7.5W Transmitting power: max. 100 mW Operating voltage receiver/transmitter: 7-36 VDC Working temperature: 0°C to +40°C Transmitter/Receiver weight: 445g/549g Dimensions Transmitter/Receiver dimensions: 87x138x10mm/116x146x50mm
