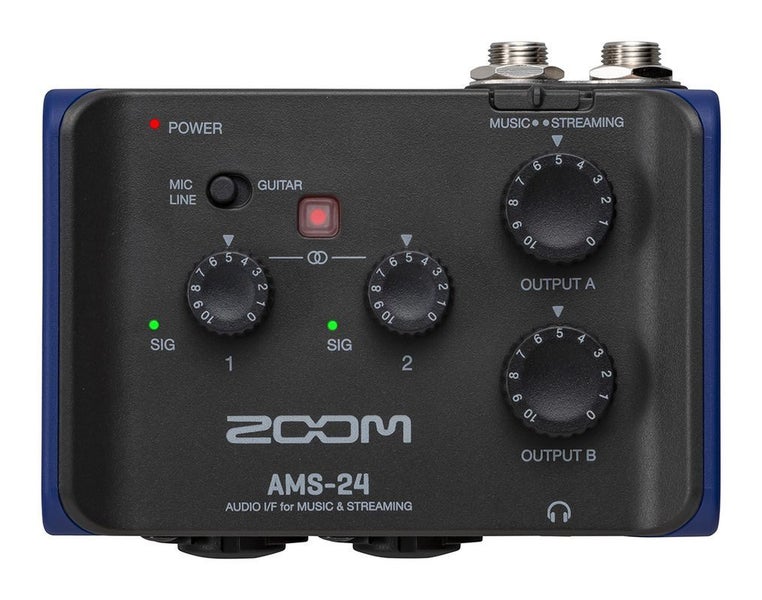

THE INS AND OUTS AMS-24 | 2-In, 4-Out The AMS-24 is perfect for solo streams and multi-instrument sessions. It features two XLR/TRS combo inputs along with Zoom's low-noise preamps. Also included are two headphone outputs and two TRS outputs for external monitors. LITTLE SWITCH, BIG STREAMS Toggle from recording to livestreaming with the Music/ Streaming Switch. When in Music mode, each input acts independently with individual gain control. It also sends separate mixes to each headphone output. When in Streaming mode all inputs are combined into one signal to work seamlessly with your streaming software.

DIRECT MONITOR SWITCH ONBOARD MONITORING Use the Direct Monitor Switch to send the input signal directly to your headphones while routing the same signal to your DAW or streaming software.

LOOPBACK SWITCH LOOP IT BACK The Loopback Switch combines the input audio with playback from your computer and routes it to your streaming software. This is perfect for adding background music to your stream or singing live with an instrumental track.

SWITCHES MIC/LINE - GUITAR Switch Input 1 from Mic or Line Level to Guitar Level (Hi-Z).

SWITCHES STEREO LINK Links two inputs for stereo recording or streaming, and allows you to control both inputs with one gain knob.

SWITCHES PHANTOM POWER Provides 48V phantom power for condenser microphones. POWER OPTIONS All three AMS interfaces can be powered from your PC or Mac via USB-C. Use external power when working from a tablet or mobile phone. Additionally, the AMS-24 and AMS-44 can also use two AA batteries.
