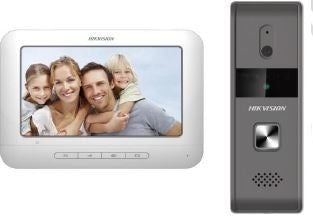

DS-KIS203 Video Door Phone Package Deal

Key Features Door Station Self-adaptive IR supplement One-touch calling Pinhole camera with 720 x 576 @ 25 fps Unlock controlling Indoor Station Hands-free video intercom communication Supports monitoring the door station and the external analog camera Remote unlocking Convenient installation and easy operation

Typical Application

Specification Door Station (DS-KB2421-IM): Video Camera :

• 1/4" CMOS,
• Resolution 720 x 576,
• frame rate PAL: 25 fps

Audio:

• input Built-in Omnidirectional Microphone
• output Built-in Loudspeaker
• quality Noise Suppression

Light Supplement: Photosensitive IR Supplement, IR Range: 2 Meters

Device interfaces:

• Four-wire interface: 1 Four-Wire Interface (1-ch Video Input, 1-ch Audio Input/Output, 1-ch Power Supply, 1-ch Grounding)
• I/O output : 1 Relay Output

General:

• Material Zinc Alloy
• Power consumption Max. 5W
• Working temperature -30o C to +70o C (-22o F to 158o F)
• Working humidity 10% to 90%
• Dimension (L x W x H) 145mm x 49.2 mm x 26.45 mm (5.7" x 1.9" x 1.0")

Indoor Station (DS-KH2220) Display:

• Display screen 7-Inch Colorful TFT LCD
• Display resolution 800 x 480
• Operation method Physical Button

Audio:

• input Built-in Omnidirectional Microphone
• output Built-in Loudspeaker
• quality Noise Suppression and Echo Cancellation

Device interfaces:

• 4 Four-Wire Interfaces, 1-ch Video Input, 1-ch Audio Input/Output, 1-ch Power Supply, 1-ch Grounding

General:

• Power supply 12 VDC
• Power consumption 5 W
• Working temperature -10o C to + 55o C (14o F to 131o F)
• Working humidity 10% to 90%
• Dimension (L x W x H) 195.8 mm x 132.8 mm x 18.39 mm (7.7" x 5.2" x0.7")

Appearance and Interface:

1 Microphone 1 Power Supply Indicator 2 Built-in Camera 2 Call Accept/Decline Key 3 Supplement Light 3 Unlock Key 4 ...
