ANOTHER GREAT PRODUCT FROM FORCE EQUIPMENT!!

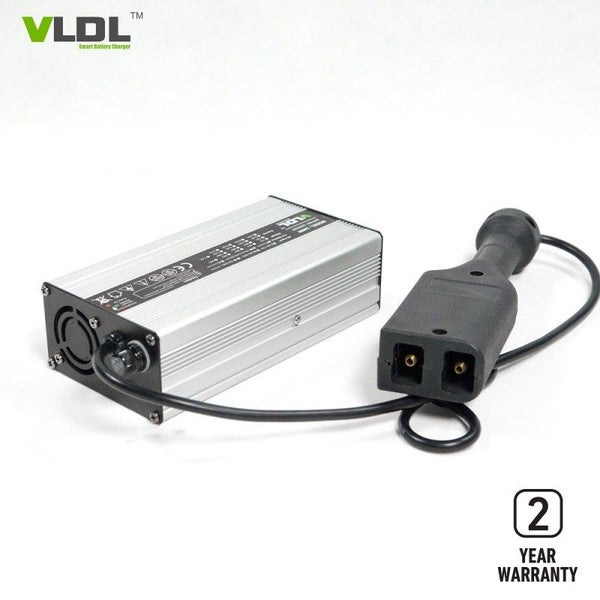

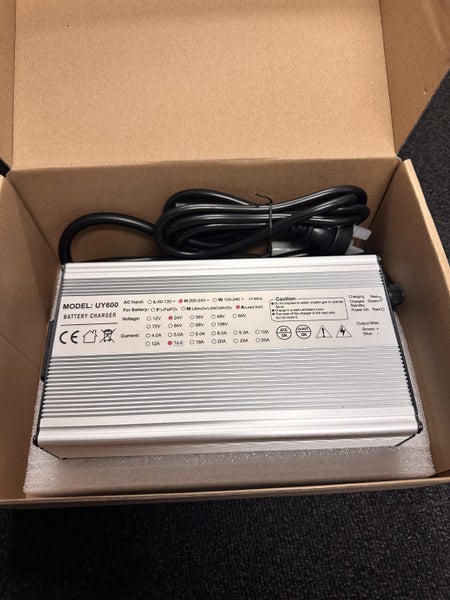

New 24V 16Amp Smart Charger

Designed for 24V lead-acid battery, input with 110 or 230Vac and rated output voltage is 24V 16A. Smart max charging voltage is 29.4V Lithium ion batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut - off, this charger will charge your battery very fast, with high efficiency and protect your battery life to the max. High quality, factory price and 2 years warranty.

Features

1. Optional charging methods: Lithium or AGM batteries.
2. Advanced high frequency switching mode power supply technology.
3. DC output isolated from AC input.
4. Input 110/230Vac, 50Hz~60Hz.
5. Charging parameters are insensitive to the AC input line voltage variations.
6. Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.
7. Protections: Short circuit, Over - voltage, Over - temperature, Reverse Polarity.
8. Aluminum casing, light weight, portable.
9. 100% full load burn-in test.
10. 2 years warranty.

Technical Specs.:

1. Dimensions(LxWxH): 170 x 90 x 50 mm
2. Net weight: 1.0 KG
3. Max charging voltage(CV): 29.4 volt
4. Floating voltage: /
5. Max output current (CC): 16 amps
6. Charging method: Automatic CC, CV and Float
7. AC input voltage: 230Vac
8. AC input freq.: 50 / 60 Hz
9. AC plug: custom-made
10. Output connector type: customized by applications
11. Enclosure: Aluminum

Note - We can fit most battery connector types

Charging types: Ideal for machinery such as Electric Golf Carts, Floor Scrubbers, Floor Sweepers, Warehouse pallet moving equipment, Scissor hoists etc
