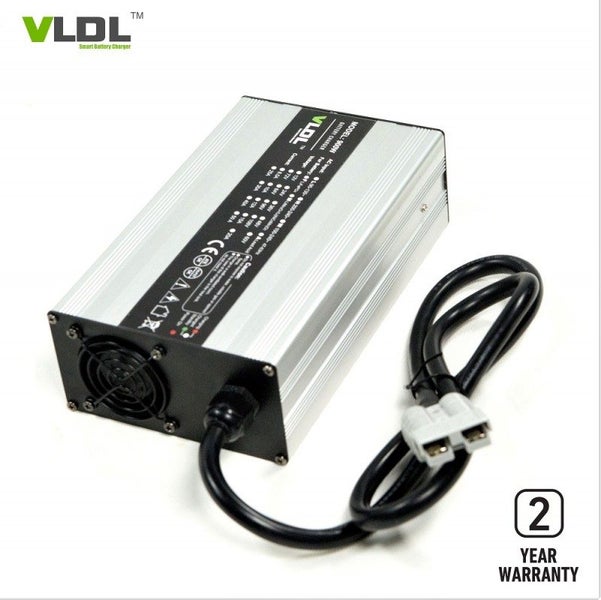

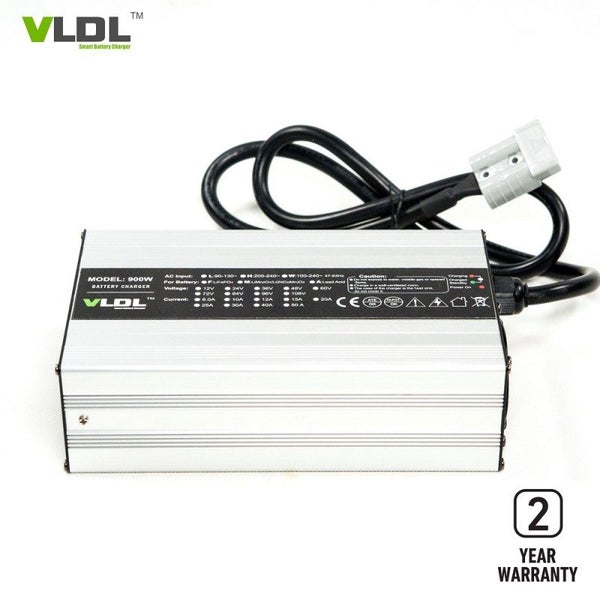

New 24V 20 Amp Smart Charger

Brief Description:

This 24V 20A smart lead-acid battery charger is designed for 24V lithium / lead acid battery power electric mobility scooters. It can charge 24V lead acid, AGM, sealed deepcycle and lithium types batteries. Smart charging with pre-charge, CC, CV and floating or automatic cut-off method. With max 28.8V / 29.4V / 29.2 Volt 20 Amps fast charging and multi-protections.

Technical Specs.:

1. Dimensions(LxWxH): 220 x 120 x 70 mm
2. Net weight: 2.5 KG
3. Max charging voltage(CV): 29.4 / 28.8 Vdc
4. Floating voltage: 27.6 Vdc
5. Max output current (CC): 20 amps
6. Charging method: pre-charge, CC, CV, floating
7. AC input voltage: 110 / 240Vac
8. AC input freq.: 50 / 60 Hz
9. AC plug: customized by user’s country
10. Output connector type: To be specified by customer
11. Enclosure: Aluminum

Features

1. Optional charging methods: SLA, AGM, GEL, Flooded.
2. Advanced high frequency switching mode power supply technology.
3. DC output isolated from AC input.
4. Automatic worldwide Input 110/230Vac(90264Vac), 50Hz60Hz.
5. Charging parameters are insensitive to the AC input line voltage variations.
6. Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.
7. Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
8. Aluminum casing, light weight, portable.
9. 100% full load burn-in test.
10. 2 years warranty.

Charging types: Ideal for machinery such as Electric Golf Carts, Floor Scrubbers, Floor Sweepers, Warehouse pallet moving equipment, Scissor hoists etc

Note we can fit most type battery connectors upon request
