Introducing the Mustpower PH10-5048A High Frequency Hybrid Solar Inverter

Series: PH1000, 5KW

Key Features:

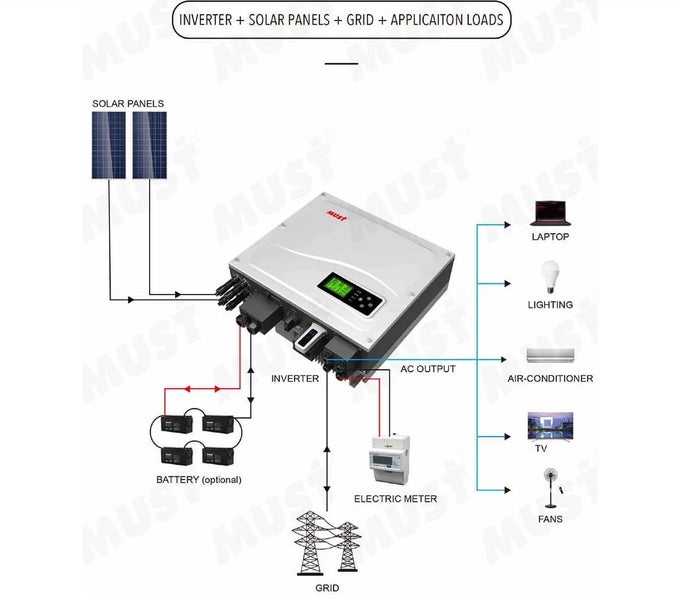

Wide MPPT voltage range: 120-550V Multiple modes: Grid-tie, off-grid, grid-tie with backup LCD display & Smart LCD settings Export Power Manager Multiple communication options: USB, RS485, GPRS, WiFi Remote monitoring via computer or mobile phone Full protection: Over-voltage, over-frequency, over-current, over-temperature, AC short-circuit Intelligent BMS battery management Fanless, low-noise design IP65 Dust-proof and waterproof

Specifications: Model: PH10-5048A Rated Power: 5000W Nominal Battery System Voltage: 48V PV Input (DC): Max recommended DC power: 5750W Nominal DC operating voltage: 360V Max DC voltage: 580V MPPT voltage range: 120550V Max input current: 11/11A Max short circuit current: 15/15A 2 MPP trackers, 1 string per tracker Inverter Output (AC): Nominal AC output power: 5000W Nominal output voltage; range: 220/230/240V; 180-280V Nominal output current: 21.8A Max output current: 22.8A Battery & Charger: Compatible with Lead-acid and Lithium batteries Battery voltage: 48V Battery voltage range: 4060V Max charging/discharging power: 2500/2500W Max charging/discharging current: 50/50A

Dimensions & Weight: 480 x 420 x 215 mm Net weight: 27 kg
