Mini Humidifier Ultrasonic Mist Maker Atomizing Module DIY Kit + AA Battery Box

Features

1. 1.2MM FR-4 material, circuit board design is reasonable, long service life.
2. Strong versatility, large fog output, stable performance, simple to use, easy to get started.
3. Easy to use, with AA battery box, 3 AA battery input power, suitable for scientific experiments.

4.Module set ready to use, each set of modules with bracket and cotton swabs, easy to assemble.

5.Micron atomization, atomize the water through the microscopic holes into fine water molecules, wafted in the air.

Specification

Name:Single spray humidification module

Material:1.2MM FR-4

Rated voltage:1.5Vx3[3pcs #5 battery(power supply)

Rated current: 300MA

Power:1.5-2W

Atomization frequency:108KHZ2KHZ

Module: 28x18.6MM

Bracket: 25x38MM

Cotton stick: 8x100MM

Battery box parameters:

Model:JY001-02

Rated voltage:3pcs #5 batteries

Rated current:300MA

Power terminal port: PH2.0

Cable length:15CM

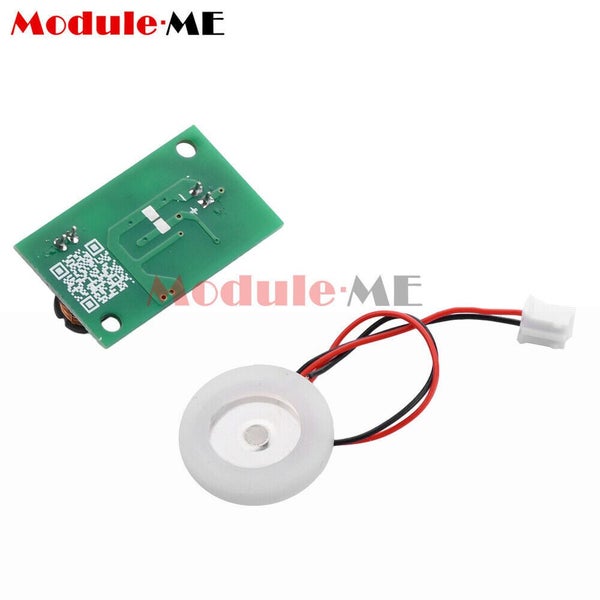

Fogging sheet parameters:

Name: microporous atomizer tablets

Driving voltage:5V

Resonant frequency: 108-110KHZ 5

Rated power: 2W

Number of holes:1100

Hole diameter: 4-5UM

Outer diameter of the silicone sleeve: 20MM

Thickness of rubber ring:3MM

Diameter of steel plate:16MM

Wire length:100MM

Wire terminal:PH2.0

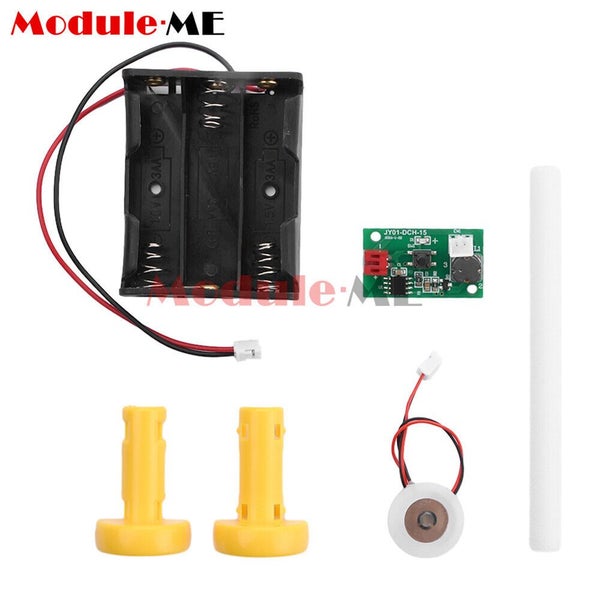

List

1 x Module

1 x Cotton swab

1 x Holder

1 x Nebulizer Tablet

1 x Battery box
