Counter Electronic Digital Total Tally Magnetic inductive proximity sensor Large easy read display, self powered.

Versatile Digital Electronic Counter Module , easy to read LCD dispaly with counting range 5 digits 0-99999 count, self powered with easily replaceable battery, uses very little power, has front panel and rear terminal reset with pause button facility. Uses a magnetic proximity switch to detect passing objects with a maximum detection range of 30 mm.

Features

1. Five Digit LCD display, Large 13 mm x 6 mm LCD digits
2. Pause key for stopping count.
3. Magnetic proximity sense, no false counting.
4. Maximum counting speed -. 100 passes per second
5. Reset: through pressing the Reset buttons on board or external contact closure on rear terminals.
6. Self powered using internal battery
7. Solid state , employing good vibration resistance. No mechanical parts to wear out.

8 Free from mechanical abrasion, safe work, long lifespan

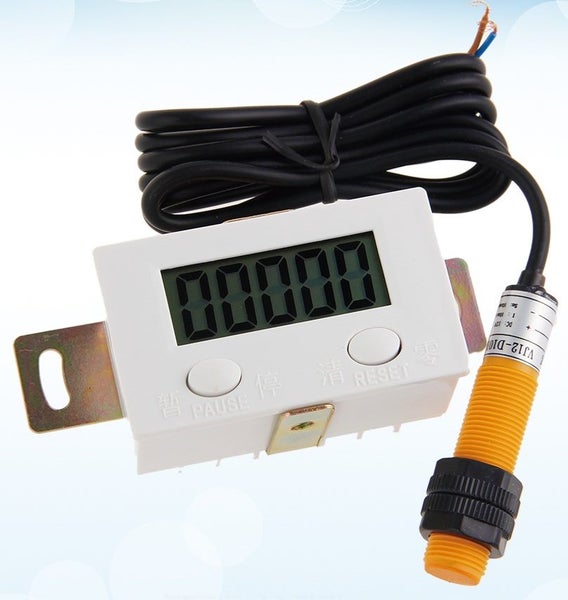

1. Two versions available, one with mounting wings the other a slimline rim, see photo 2, random type sent if not indicated in post auction notes

Specifications Power: 1.5V—AA 5th battery Reset modes: on board button and exterior terminals Counting range: 0---99999 Available ambient temperature: -5 - 40°C Minimum count pulse width : 10 mSec Dimension: 64 x 38 x 38 mm Prox detector : 12 mm dia x 40 mm long thread Normal detection distance 5-10 mm Maximum distance for induction : = 30 mm Panel cutout size: 61 x 36 mm Total weight: about 120g including mounting clamps

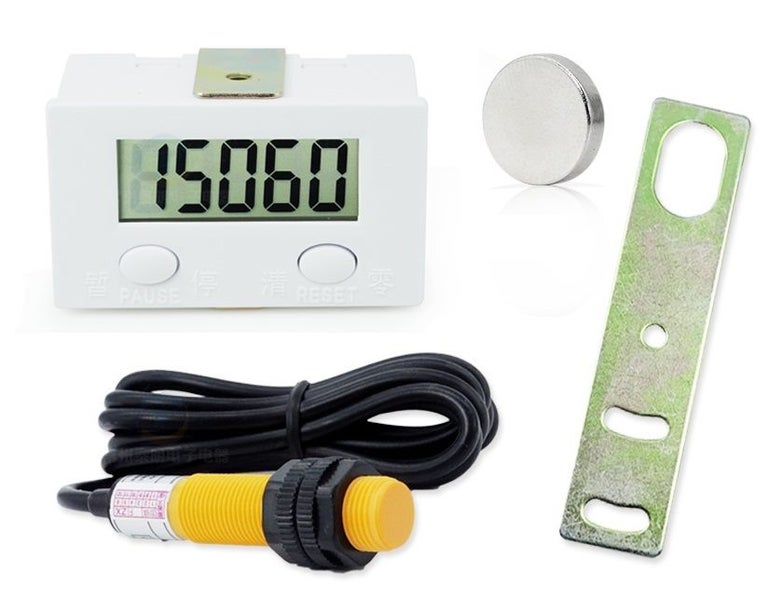

Whats Shipped 5 digit Electronic Counter - Proximity detector and magnet Mounting brackets
