QC3541

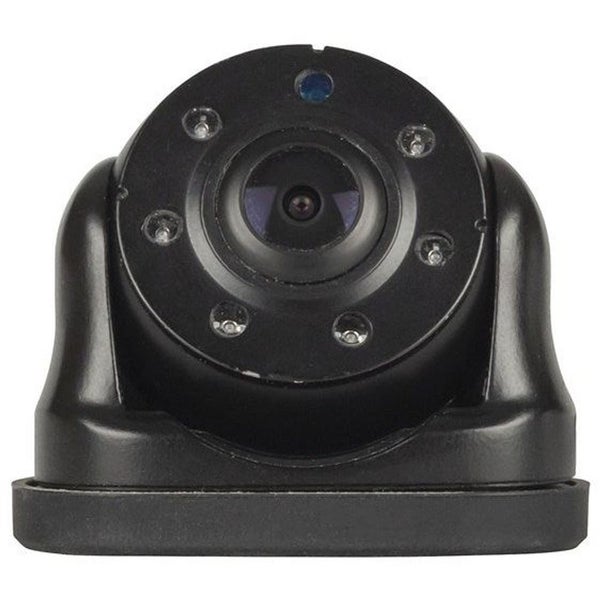

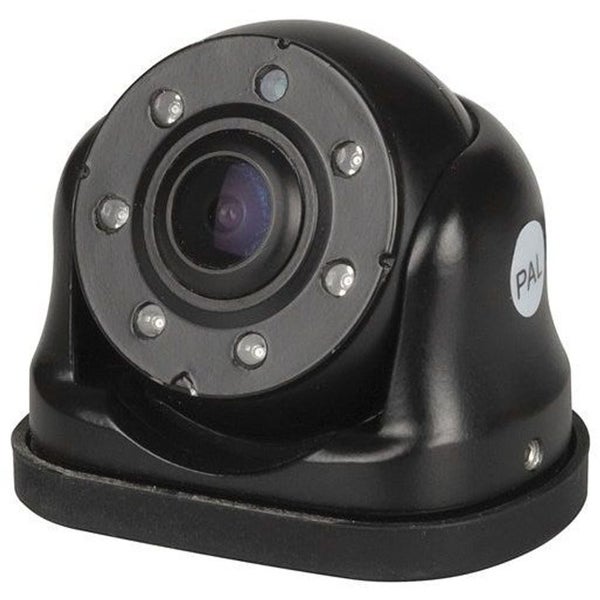

1080p HD1080p HD Bullet CameraMini HD dome camera ideal for front or rear of vehicle as a reverse camera, metal case with IP69 rating allows for all weather operation, built in IR LEDS allow clear image during night operation, image changes to black and white at night automatically. 120 degree viewing angle with 4 way position adjustment to make sure you get the ideal viewing angle. Cameras connect to display using 4 pin din style connector. Suitable as additional cameras for QV3500.

Specifications

Specifications

Length : 45mm

Width : 42mm

Depth : 33mm

Weight : 56g

Cable length : 0.5m

Packaged Volume : 0.54l

Packaged Weight : 0.15kg

Packaged Length : 11.6cm

Packaged Width : 8.1cm

Packaged Height : 5.8cm

Operating Temperature : -20oC, 70oC

Dust/Particle Ingress Protection : 6 - Dust tight, no ingress of dust

Liquid/Moisture Ingress Protection : Withstand high-pressure and steam cleaning

Supported Display Resolution : 1080p (1920 x 1080)

Current Draw : 125mA, 250mA

Dashcam Lens Angle : 120o

Video Format : PALNTSC

Bulit-in IR LEDs : true

Required Voltage : 12V, 24V

TV System : PAL Video

Camera Sensor Type : CMOS

Camera Sensor Size : 1/2.7in

Number of IR LEDs : 7pc

Minimum Illumination : 0.1lux

IP Rating : IP69K

Make of outer material : Aluminimum

Availability : Stocked item
