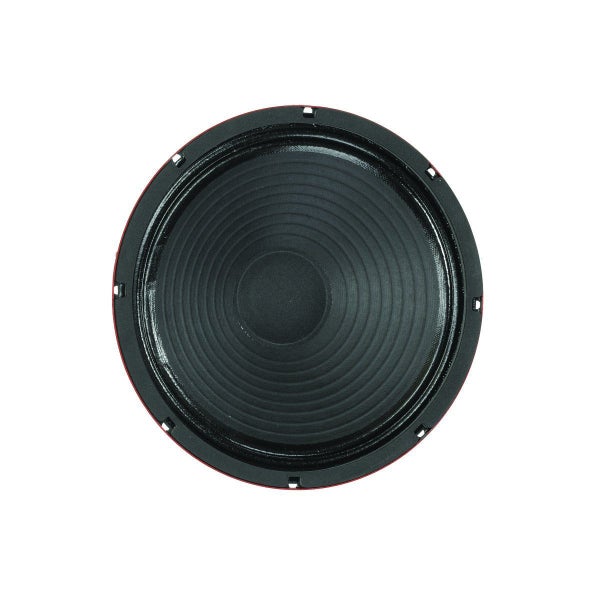

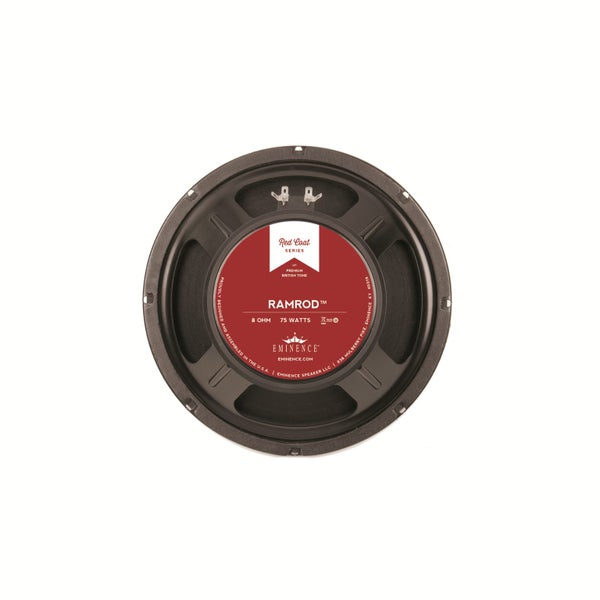

The Eminence Ramrod guitar speaker takes your best licks and drives them home. Very loud and gutsy, with meaty tone. The highs really sing with nice, clear overtones.

SPECIFICATION

Nominal Basket Diameter

10", 254 mm

Nominal Impedance*

8 Ohm

Power Rating*

Program Power

N/A

Watts

75 W

Resonance

101 Hz

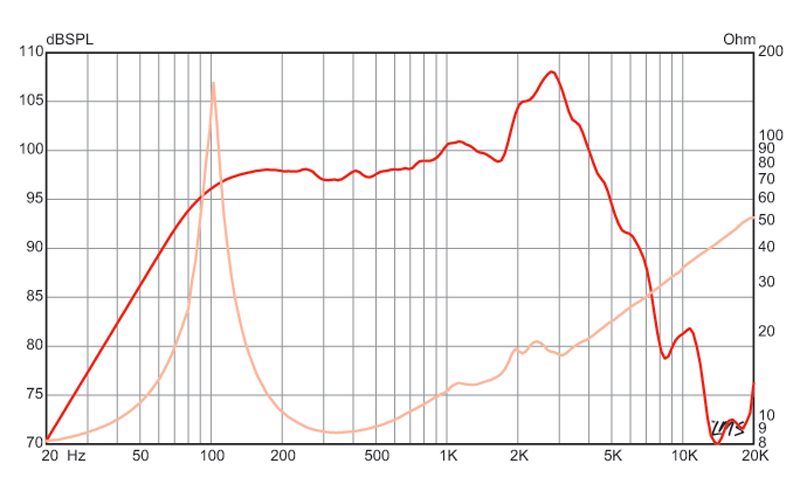

Usable Frequency Range

80 Hz - 4 kHz

Sensitivity*

100.2 dB

Magnet Weight

30 oz.

Gap Height

0.312", 7.9 mm

Voice Coil Diameter

1.5", 38 mm

THIELE & SMALL PARAMETERS

Resonant Frequency (fs)

101 Hz

DC Resistance (Re)

7.3 Ohm

Coil Inductance (Le)

0.39m H

Mechanical Q (Qms)

10.8

Electromagnetic Q (Qes)

0.68

Total Q (Qts)

0.64

Compliance Equivalent Volume (Vas)

24.6 liters / 0.87 cu.ft.

Peak Diaphragm Displacement Volume (Vd)

17.6 cc

Mechanical Compliance of Suspension (Cms)

0.13 mm/N

BL Product (BL)

11.5 T-M

Diaphragm Mass Inc. Airload (MMs)

19 grams

Efficiency Bandwidth Product (EBP)

149

Maximum Linear Excursion (Xmax)

0.48 mm

Surface Area of Cone (Sd)

366.1 cm2

Maximum Mechanical Limit (Xlim)

N/A

MOUNTING INFORMATION

Recommended Enclosure Volume

Sealed

Acceptable

Vented

Acceptable

Driver Volume Displaced

0.039 cu.ft. / 1.1 liters

Overall Diameter

10.11", 256.8 mm

Baffle Hole Diameter

9.13", 231.9 mm

Front Sealing Gasket

Yes

Rear Sealing Gasket

Yes

Mounting Holes Diameter

0.23", 5.8mm

Mounting Holes B.C.D.

9.6", 243.8mm

Depth

4.3", 109.2 mm

Net Weight

6.4 lbs, 2.9 kg

Shipping Weight

8.3 lbs, 3.76 kgs

MATERIALS OF CONSTRUCTION

Coil Construction

Copper voice coil

Coil Former

Polyimide former

Magnet Composition

Ferrite magnet

Core Details

Non-vented core

Basket Materi....
