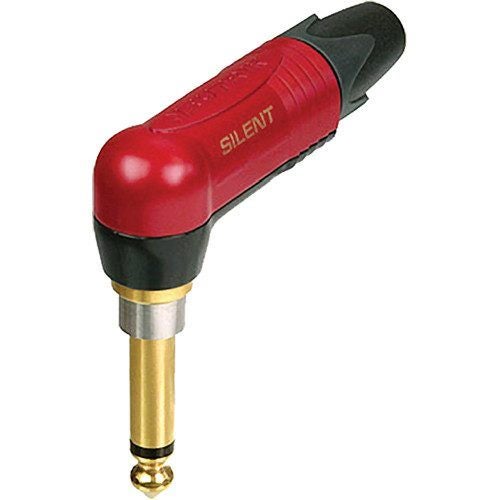

Overview The Neutrik NP2RX-AU-SILENT 2-Pole Right Angle 1/4" Professional Phone Plug automatically mutes (shorts) an instrument cable to avoid pops and squeals when changing the instrument under load. The integrated silent switch is based on REED-technology and guarantees a lifetime beyond 10,000 mating cycles. This plug features a rugged metal shell enhanced with a rubber cushion overlay for improved shock protection. Key Features

• Avoid pops and squeals
• Hermetically sealed switching contacts
• Lifetime beyond 10,000 mating cycles
• Slim plug with industry proven and reliable chuck-type cable strain relief
• Sleek attractive design for convenient handling and connections
• Rubber overlay on straight housing for best shock-protection and reliability Specifications Connection Type Plug Gender Male Contact Resistance Depends on mating connector mOhm (inner) Dielectric Strength 1 kVDC Insulation Resistance >2 GOhm (initial) Rated Current Per Contact Depends on mating connector A Rated Voltage 50 V Cable O.D. 0.15 to 0.27" (4 to 7 mm) Lifetime >1000 mating cycles Wire Size 1 mm2, 18 AWG Wiring Solder contacts Bushing Polyacetal (POM) + PU Contact Plating 0.2 um Au Contacts Brass (CuZn39Pb3) Insert Polyamide (PA 6.6 30 % GR) Shell Zinc diecast (ZnAl4Cu1) Shell Plating Partly red coated, black chromium plated Strain Relief Polyacetal (POM) Standard Compliance IEC 60603-11 / EIA RS-453 Solderability Complies with IEC 68-2-20 Temperature Range -4 to 149 F (-20 to 65 oC) Dimensions (L x H) 2.4 x 2.18" (61.3 x 55.5 mm) Plug Diameter : 0.25" (6.3 mm)
